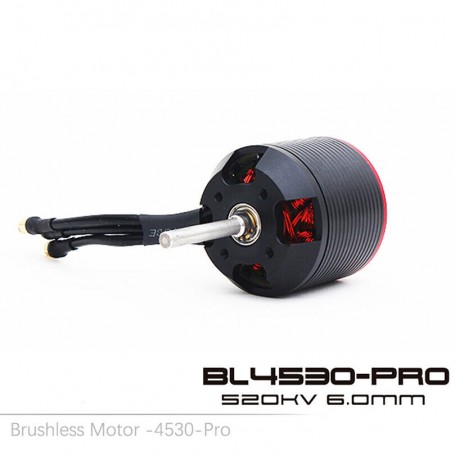

ALZRC Brushless Motor 4530PRO - 520KV
zoom_out_map
chevron_left chevron_right
Nouveau

ALZRC Brushless Motor 4530PRO - 520KV

179,00 CHF TTC 165,59 CHF (HT)
TTC
check En Stock

ALZRC Brushless Motor 4530PRO - 520KV



This is the most powerful brushless motor in its class. the torque that it delivers is out of this world. This motor is a 520KV motor and has a 6mm diameter main shaft



ALZRC Brushless Motor 4530-Pro 520KV



Specification:



Brand: ALZRC

Model: BLS4530-PRO

Stator Diameter: 45mm

Stator Thickness: 30

No. of Stator Arms: 12

Magnet Poles: 10

Motor Wire: 0.7mm

Motor KV: 520kv

No-load Current ( IO/10V ): <2A

Motor Resistance (RM): 0.013

Max Continuous Current: 150A

Max Continuous Power: 4700W

Max. Peak Current: 250A

Max. Peak Power: 11050W/2Sec

Weight: 540g

Outside Diameter: 56.7mm

Body Length: 60.42mm

Shaft Diameter: 6.0mm

Overall Shaft Length: 103mm

Max Lipo Cell: 12s

Motor Timing: 5-15°

Drive Frequency: 32KHz

Plug: 6.0 mm Gold-plated Banana Plugs



Package Included:



1 * 520KV Brushless Motor

BL4530 PRO
0.40 kg
