MR STEELE APEXLR 7" FPV FRAME KIT - LIGHT WEIGHT
zoom_out_map
chevron_left chevron_right

MR STEELE APEXLR 7" FPV FRAME KIT - LIGHT WEIGHT

145,90 CHF TTC 134,97 CHF (HT)
TTC
check En Stock

MR STEELE APEXLR 7" FPV FRAME KIT - LIGHT WEIGHT



The ApexLR 7" frame for longer-range exploration and videography.



As prop size increases, the longer arms required cause vibration issues which negatively impact flight performance and video stability. The ApexLR uses a unique tension brace design between the arms to increase stiffness and shift the resonant frequency of the assembly.



Pre-loading the arms in this way allows us to keep vibration to a manageable level while still using 5.5mm thick arms for a 7" prop. Our approach saves 20g in carbon weight alone compared to equivalent 8mm thick arms.



The Apex LR is a variation on the typical 'dead cat' frame which we have modified to keep the front and rear motors aligned, allowing us to maintain the much-loved compressed-x geometry in the motor layout.



This ensures the frame remains balanced and flight characteristics are not compromised, unlike the classic 'dead cat' design which moves the rear motors closer to the body and severely impacts handling.



Impulse RC Apex LR 7" Frame Kit



CUSTOM GOPRO MOUNTING

For quick angle changes while filming, not many mounts can beat the standard GoPro tab and slot design. However the stock GoPro bolt leaves a lot to be desired for FPV use.



DSC06459-Edit03_1024x1024.jpg?v=1643156150



 Included with the Mr Steele version of the ApexDC is not only a 3D printed mount, but also a new custom designed bolt, specifically for FPV use.

Our new bolt is machined from aluminium for substantial weight savings and has an 8mm hex on the outside, along with an internal 2.5mm hex broach.

Make quick changes to your GoPro angle using either the standard hex driver for M3 bolts, or the prop tool for M5 nuts, which you already have with you in your flight bag



DSC06457-Edit02_1024x1024.jpg?v=1643156177



Caddx Vista Isolation



A major drawback of the Caddx Vista system is that the body of the unit is grounded, this can cause the conductive carbon fiber plates and frame hardware to be grounded too. In an ideal world this is not necessarily a problem, however in the real world it's an accident waiting to happen.



Impulse RC Apex LR 7" Frame Kit

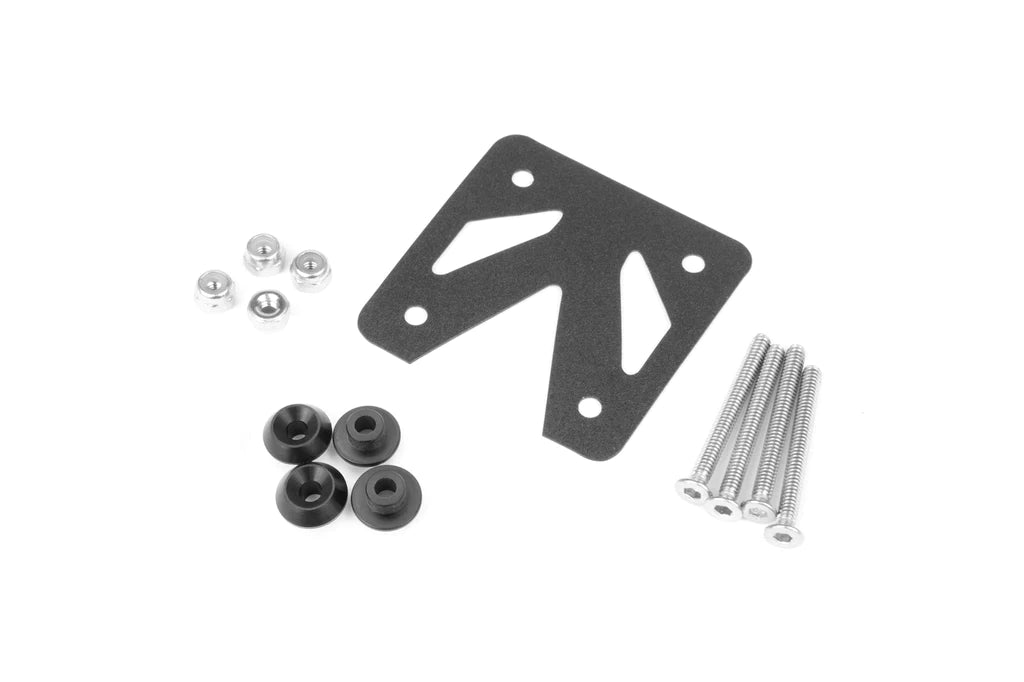

Alongside the required M2 mounting hardware for the Vista, we also include a die-cut mylar insulator and custom machined 'cone rivets' from non-conductive POM.

When installed the Caddx Vista and also the M2 hardware is electrically isolated from the frame. This solution adds only 0.5g of extra weight compared to other designs using bulky and heavy 3D prints.



Impulse RC ApexLR 7" Frame Kit



DJI HD Camera Isolation

Like the Caddx Vista itself, certain DJI HD cameras can also ground the frame, with similar unfortunate consequences.



Impulse RC ApexLR 7" Frame Kit



Included with the ApexDC are newly redesigned HD camera plates and 3D-printed insulation inserts.

This keeps the camera firmly locked in place and reduces vibrations, whilst ensuring it is electrically isolated from the frame.



Impulse RC ApexLR 7" Frame Kit



Antenna Mounting

Included in every kit is a 3D-printed antenna mount for the Caddx Vista or other similar antennas.



Impulse RC ApexLR 7" Frame Kit



 In addition the Mr Steele version of the kit also includes a standoff mount for the Tracer Immortal-T antenna.



DSC06557-Edit23_1024x1024.jpg?v=1643156451

Includes:



APEXDC KIT CONTENTS

Carbon fiber frame parts

Hardware and standoffs

Mylar and POM Vista isolation parts

Vista antenna mount

injection molded skids and bumper

injection molded wire covers

Rubber and velcro battery pads

Diamond files

Battery strap



MR STEELE KIT EXTRAS:



Includes everything in the base kit, along with the following extras:

GoPro mount and custom bolt

Tracer Immortal-T mount

7075-T6 lightweight hardware kit

Coyote Brown skids and bumper

Rubber FC vibration mounts

XT-60 pigtail

Foam strip

Additional battery strap



Carbon and Hardware dry weight: 160g



No motors and no camera includes

MSAPXLR-FRAMEKIT-LW
0.50 kg
1 Article
