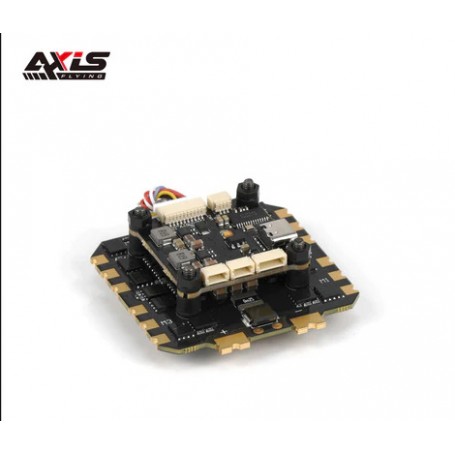

Axisflying 80A+F722 STACK For 13inch FPV Drone 6-8S Input
Axisflying 80A+F722 STACK For 13inch FPV Drone.
Plug and Play Argus is axisflying electronic series that include ESC, FC and stack. Argus series is PCB electronic only. The FC is F722 that can support X8
Features:
High-quality and large-size MOSFETs are selected, with low internal resistance and low heat generation
No welding, more peace of mind. With this FC, HD Air unit, analog camera, GPS and other common peripherals all support direct plug-in
Integrated dual BEC, support DJI O3 Air Unit air unit direct connection
The FC supports up to 8 motor outputs, easily build your X8 drone
Quickly check the working status of the FC by turning on and off the corresponding status indicator light
The FC supports INAV now
Argus F7 Specification:
ICM 42688P
Blackbox Flash 16MB
UART ports: 4
BEC :5V @2A and 9V@2A
ESC SENSOR Supported
HD/Analog Supported
RGB LED Strip / Beeper Supported
GPS Supported
X8 PWM Supported
Plug and Play Support
Size: 40.6*40*8 mm / Weight: 8.4g / Mounting Holes: M3-30.5*30.5mm
80A ESC Specification:
