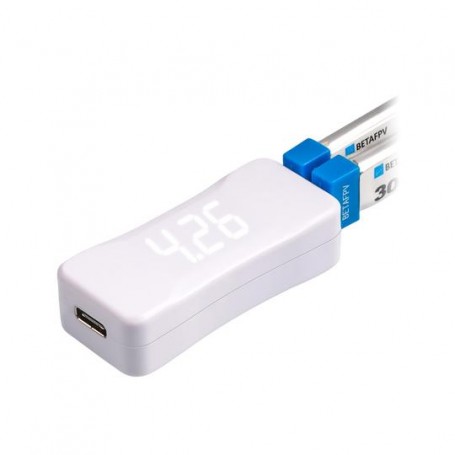

BETAFPV BT2.0 Battery Charger & Voltage Tester V2

BETAFPV BT2.0 Battery Charger & Voltage Tester V2

Carte de charge multiple en USB-C pour batteries 1S BETAFPV à connecteurs BT 2.0

Découvrez le tout nouveau chargeur de batterie et testeur de tension BT2.0. Comparé à la première version, le chargeur V2 utilise le port d'entrée Type-C pour remplacer l'entrée USB. La charge n'est plus limitée par la prise, les pilotes peuvent avoir plus d'options de charge. Pendant ce temps, le nouveau chargeur a amélioré la conception de l'apparence. Venez avec la conception cachée de l'affichage électrique et des instructions de charge, qui sont simples et belles.

•

  • Specially made for our BT2.0 series battery. It has two functions of testing voltage and charging in one, compact and easy to carry.
  • Come with a Type-C input port to replace the USB input, which makes the charging is no longer limited by the socket, pilots can get more charging options.
  • The new charger also upgrades the design of appearance. With the hidden design of the electric display and charging instructions, it is simple and beautiful.
  • Supports to charge two batteries at the same time, its charging current is 1A, BT2.0 300mah battery can be fully charged in 20 minutes, BT2.0 450mah 1S battery can be fully charged in 30 minutes.

  Power-on state

  • OUT1/OUT2 can be charged simultaneously
  • Input: USB-5V/2A
  • Output: 4.35V/1A
  • The red light indicates charging, and the green light indicates full charged


  Power-off state

  • OUT1 can be used as a battery tester while OUT2 does not possess any function


  Specifications

  • Model: BT2.0 1S Battery Voltage Checker V2
  • Plugs: BT2.0
  • Connector: Type-C
  • LCD: White
  • Weight: 12.37g
  • Dimensions: 52.7*23.2*14.2mm


  BT2.0 Connector

  BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector decreased internal resistance of connector effectively to allow more current that is transferred, which means it supports 9A continuous current(15A burst) offers stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A You can enjoy more flight time without disturb of low voltage warning through solving the problem of voltage sag. For more instruction, click here to reach.



  There is a graph of comparison between BT2.0 connector and PH2.0 connector (solid pins version) in BETAFPV 1S 300mAh battery. The discharge current is 9A in this testing. You could see that it has double time (about 2minutes) with BT2.0 connector.





  Contenu

  • 1 * BT2.0 Battery Charger and Voltage Tester V2
