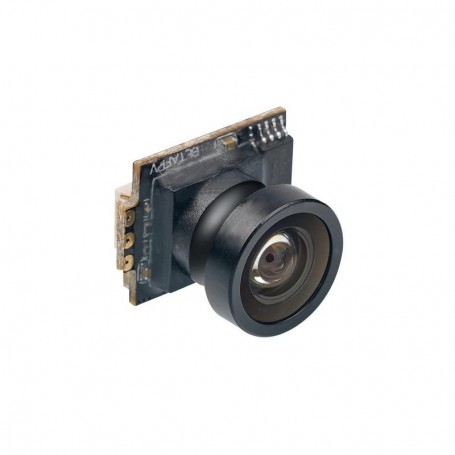

C02 FPV Micro Camera

C02 FPV Micro Camera

C02 Micro Camera is the lightweight camera customized for those weight sensitive micro whoop drones, like Meteor65, Beta65S, Beta85 pro2, HX100SE. Adapted a 1/4'' CMOS sensor, 2.1mm lens for  1200TVL resolution and excellent latency while minimizing the weight to 1.4g. Packed with the micro canopy, protect your camera well in a hard crash.

Plug-N-Play Connector

C02 camera features a JST-0.8 connector, special design in plug-and-play, makes it easy to install without soldering. Suitable for Cetus seris drones, BETAFPV F4 1S AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Bullet Points:

Miniature, and lightweight design, weight at only 1.4g. Best match with 5.8G A01 VTX on micro whoop drone.

1200TVL resolution and 1/4" CMOS sensor ensure a high-quality and clear image

Global WDR camera, 16:9 aspect ratio, shoot clear dynamic image even in low light condition

2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes

The package comes with an injection molding canopy, more durable, which is the best combo with C02 camera

Specification:

Item: C02 Camera

Image Sensor: 1/4" CMOS Sensor

Horizontal: 1200TVL with Global WDR

Signal System: NTSC

Lens : 2.1mm(M8) FOV 160°

S/N Ratio: >50db

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: 0.01Lux@1.2F

D-WDR: Auto

Day/Night: Color

Power: DC 3-5.5V

Current: 110mA@5V / 120mA@3.3V

Housing Material: ABS

Dimension: 13*11mm

Net weight: 1.4g

Package:

1 * C02 FPV Micro Camera

1 * Injection Molded Canopy

1 * 1/4'' Camera Mounting hardware
