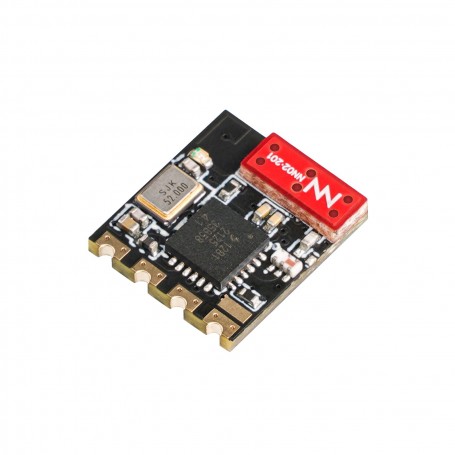

ELRS Lite Receiver V1.2 (Flat antenna)

ELRS Lite Receiver V1.2 (Flat antenna)

Building on the open-source ExpressLRS framework – renowned for delivering ultra-low latency, blistering speeds, and exceptional range – the upgraded Lite Receiver flat antenna V1.2 now features an extra-thin 3mm board, 0.46g ultra-lightweight design and enlarged soldering pads. Optimized impedance matching elevates signal reliability and sensitivity, enabling 300m range at 25mW transmitter power and up to 1000m at 50mW, pushing the boundaries of long-range potential in micro-sized receivers.

Specifications:

Weight: 0.46g (Flat Antenna V1.2), 0.47g (Tower Antenna)

Size: 11mm*10mm*3mm (Flat), 10mm*10mm*6mm (Tower)

MCU: ESP8285

Telemetry power: 17mW

Frequency bands: 2.4GHz ISM

Input voltage: 5V

Antenna: Integrated SMD ceramic antenna

Package:

1 * BETAFPV ELRS Lite Receiver flat antenna V1.2

2 * Spare shrink tube

4 * 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)
