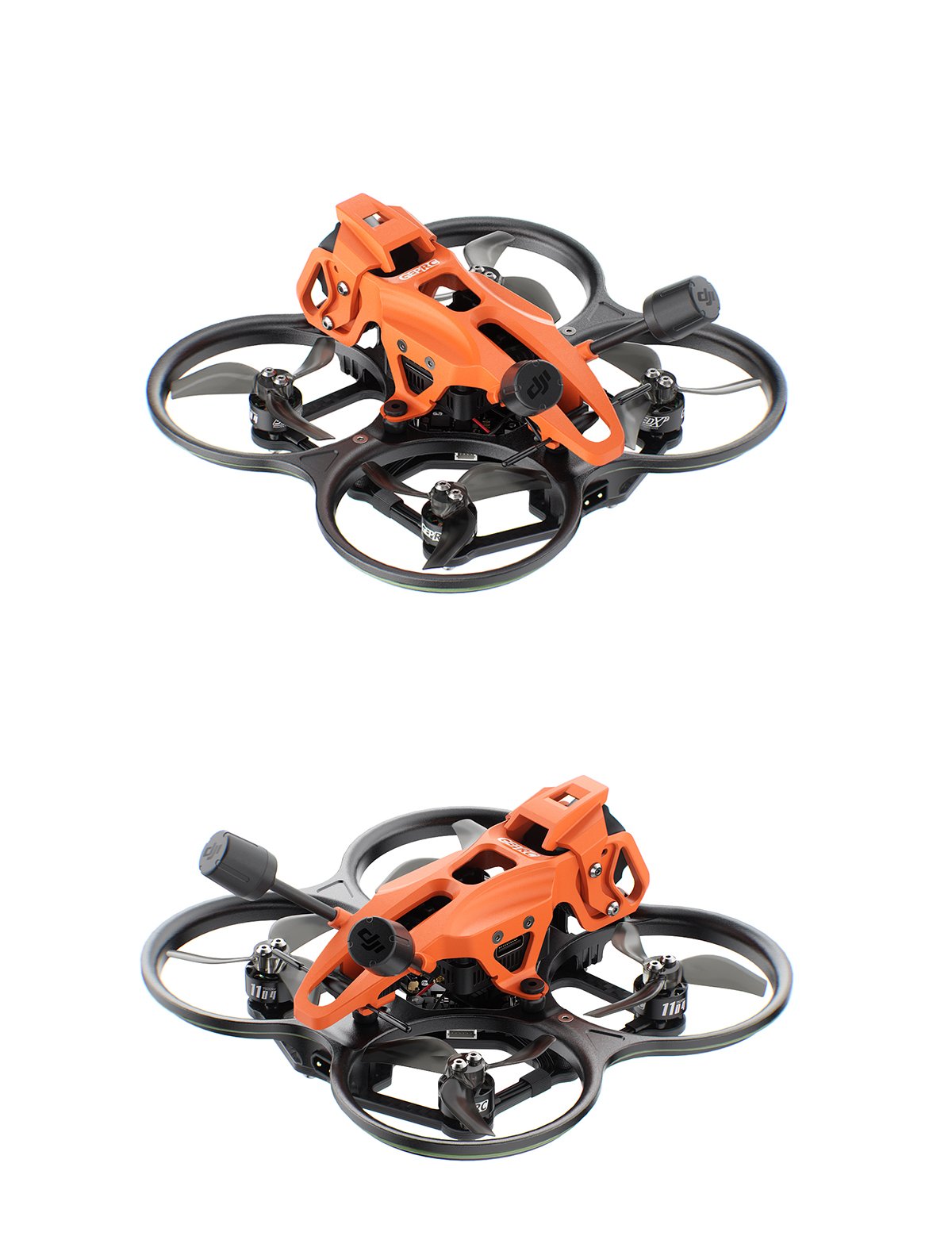

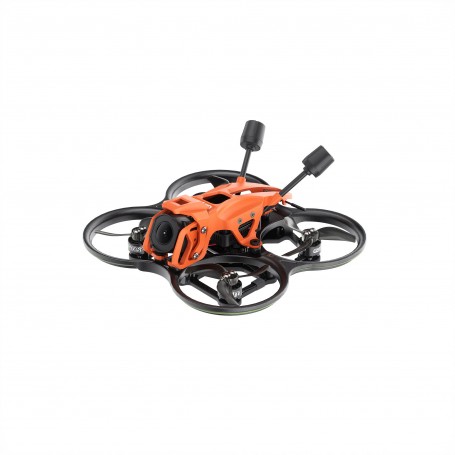

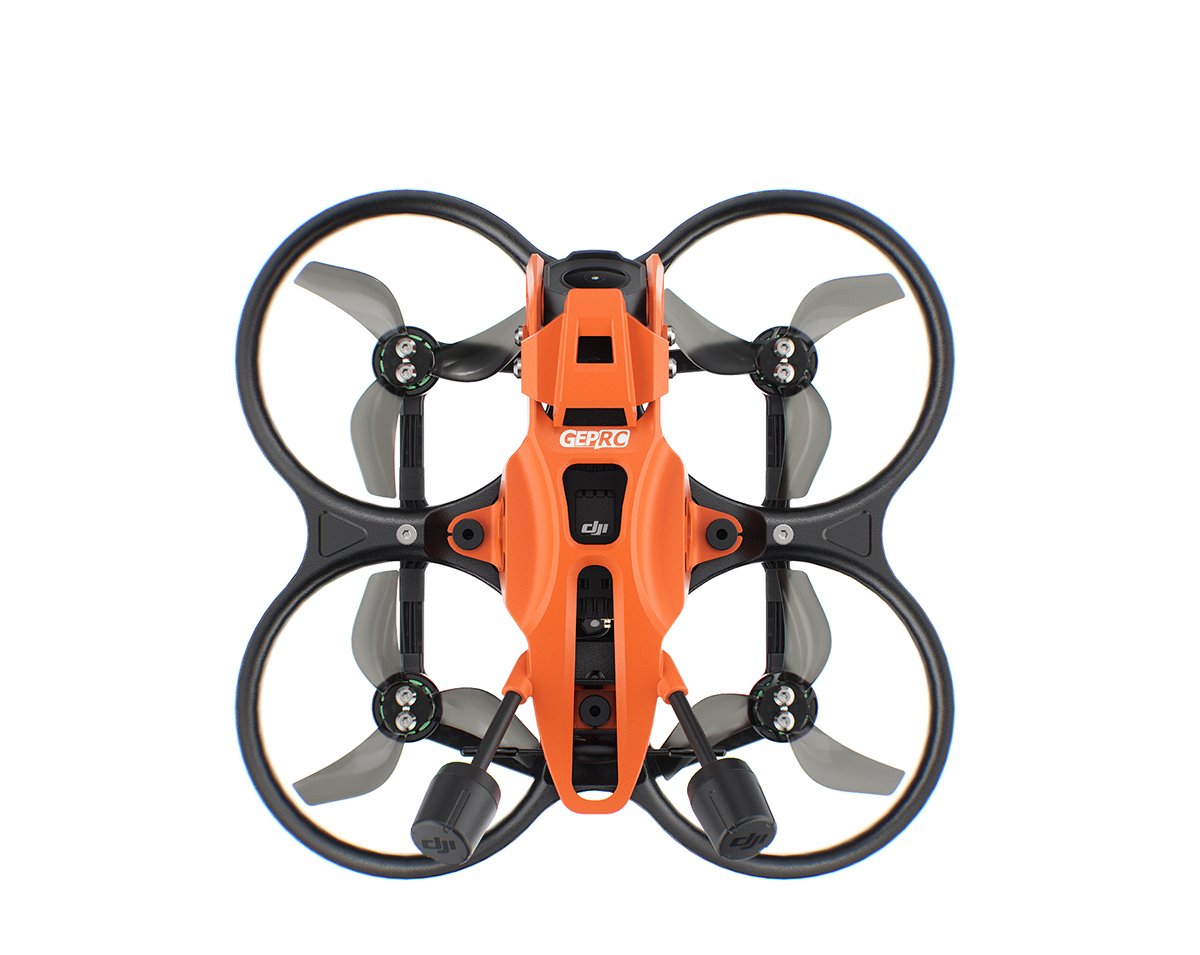

GEPRC DarkStar22 O4 Pro CineWhoop Quadcopter

GEPRC DarkStar22 O4 Pro CineWhoop Quadcopter

The DarkStar22 combines high performance with portability, equipped with the DJI O4 Pro VTX system, delivering ultra-low latency, HD stable long-range transmission.

It features the latest TAKER F405 20A ELRS2.4 2-4S AIO flight controller with an integrated receiver, eliminating the need for an additional RX and ensuring compatibility with all mainstream ELRS protocol radios. The innovative five-point floating damping system provides a stable working environment for the O4 Pro gyro, enabling smooth and stabilized video output.

With a reserved GPS mount, pilots can enjoy safer flights in complex outdoor environments. The SPEEDX2 1104 7500KV motors, paired with newly designed high-efficiency 2219 props, deliver a strong punch while maintaining an excellent balance of power and endurance.

The entire build is compact, reinforced with a thickened canopy and prop guards for crash resistance, making it beginner-friendly and safe to fly both indoors and outdoors. Truly a performance beast among micro cinewhoops!

Feature:

Mini-sized drone with DJI O4 Pro HD system, supporting up to 4K 120fps recording.

Powered by the latest TAKER F405 20A ELRS2.4 2-4S AIO with integrated ELRS 2.4G receiver.

Camera protection canopy effectively shields the O4 Pro camera module.

All-new five-point damping design, enhancing stability for the O4 Pro camera module.

Simple body structure – only 4 screws to disassemble the frame.

LED strip powered by a mini controllable BEC – small in size, big in function.

O4 Pro mounting module includes reserved GPS slot, supporting most mainstream Mini GPS modules.

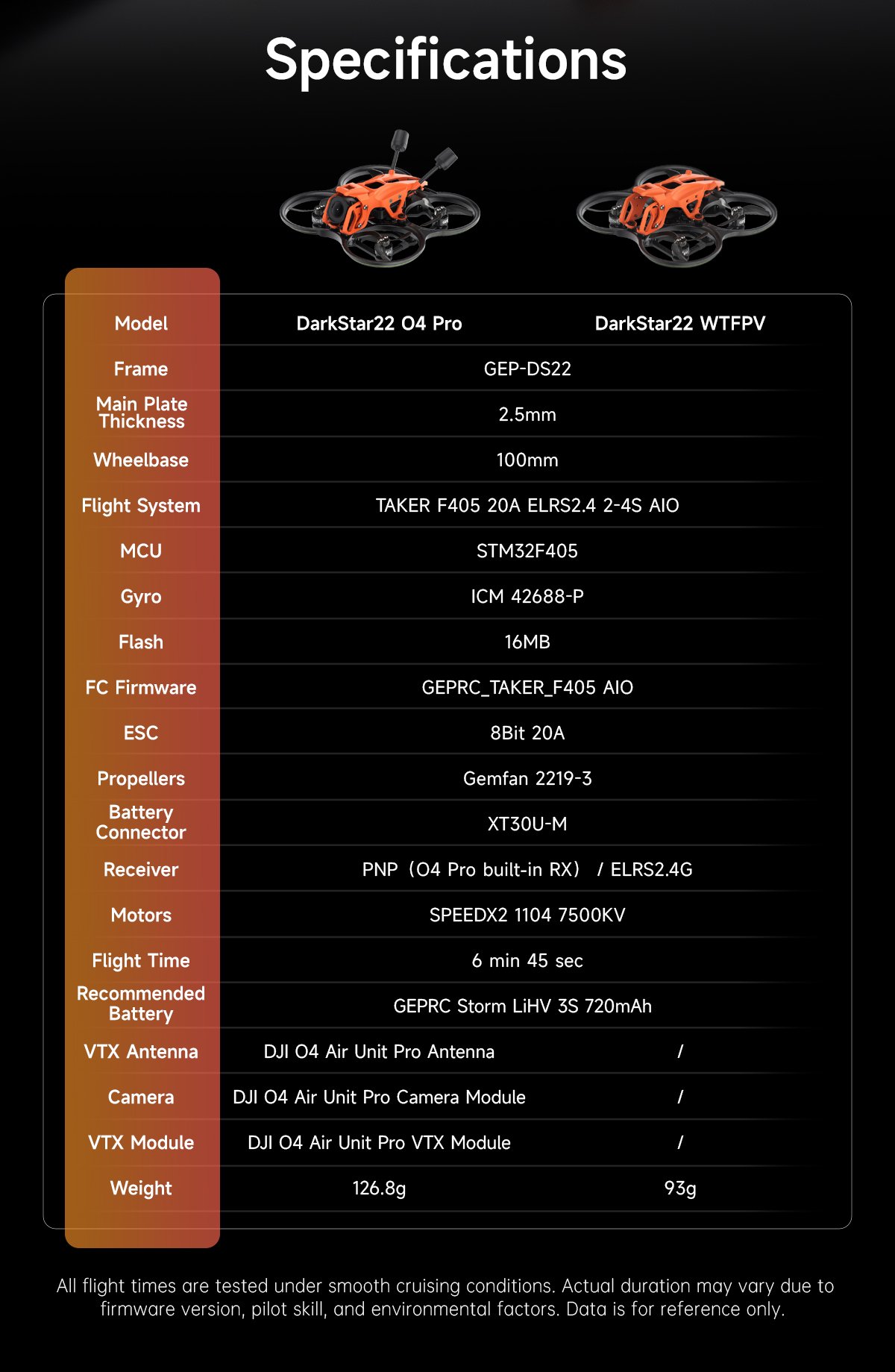

Specifications:

Model: DarkStar22 O4 Pro

Frame: GEP-DS22

Main Carbon Plate Thickness: 2.5mm

Wheelbase: 100mm

FC System: TAKER F405 20A ELRS2.4 2-4S AIO

MCU: STM32F405

Gyro: ICM42688-P

FC Firmware: GEPRC_TAKER_F405 AIO

Flash: 16MB

ESC: 8Bit 20A

Motor: SPEEDX2 1104 7500KV

Propellers: GEPRC x GEMFAN GP2219-3

Power Connector: XT30U-M

VTX: DJI O4 Air Unit Pro

Camera: DJI O4 Air Unit Pro camera module

Antenna: DJI O4 Air Unit Pro antenna

Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G

Weight (ELRS 2.4G version): 126.8g

Recommended Battery: GEPRC Storm LiHV 3S 720mAh

Flight Time: 6min45s (tested under smooth cruising; actual flight time depends on flight style)

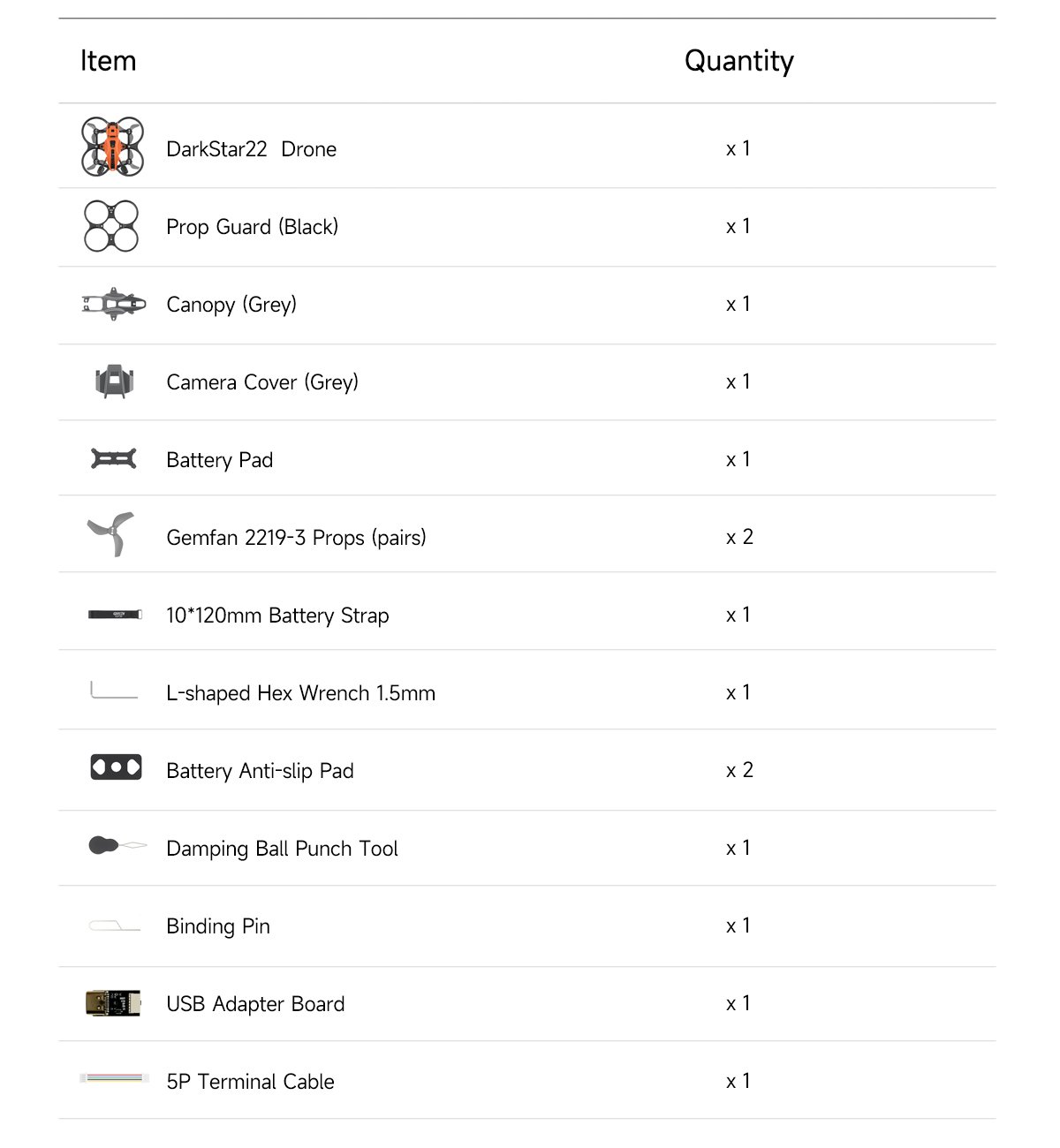

Includes:

1 × DarkStar22 Drone

1 × Prop Guard

1 × Canopy

1 × Camera Cover

1 × Battery Pad

2 × Propellers (pairs)

1 × 10*120mm Battery Strap

1 × L-shaped Hex Wrench 1.5mm

1 × Battery Anti-slip Pad

1 × Damping Ball Punch Tool

1 × Binding Pin

1 × USB Adapter Board

1 × 5P Terminal Cable

Spare Screw Pack Includes:

2 × Damping Balls

4 × M2*4 Round-head Screws

4 × M2*7 Round-head Screws

4 × M2*6 Countersunk Screws

4 × M2*5 Countersunk Screws

4 × M2*6 Round-head Screws

4 × M2*7 Countersunk Self-Tapping Screw
