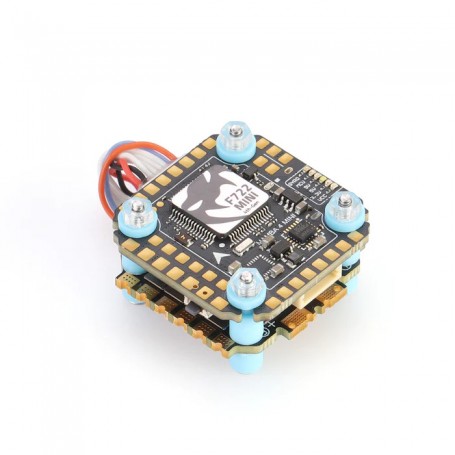

DIATONE MAMBA MK4 F722 MINI REACTOR 44A BLHELI_32 STACK (MPU6000)
DIATONE MAMBA MK4 F722 MINI REACTOR 44A BLHELI_32 STACK (MPU6000)

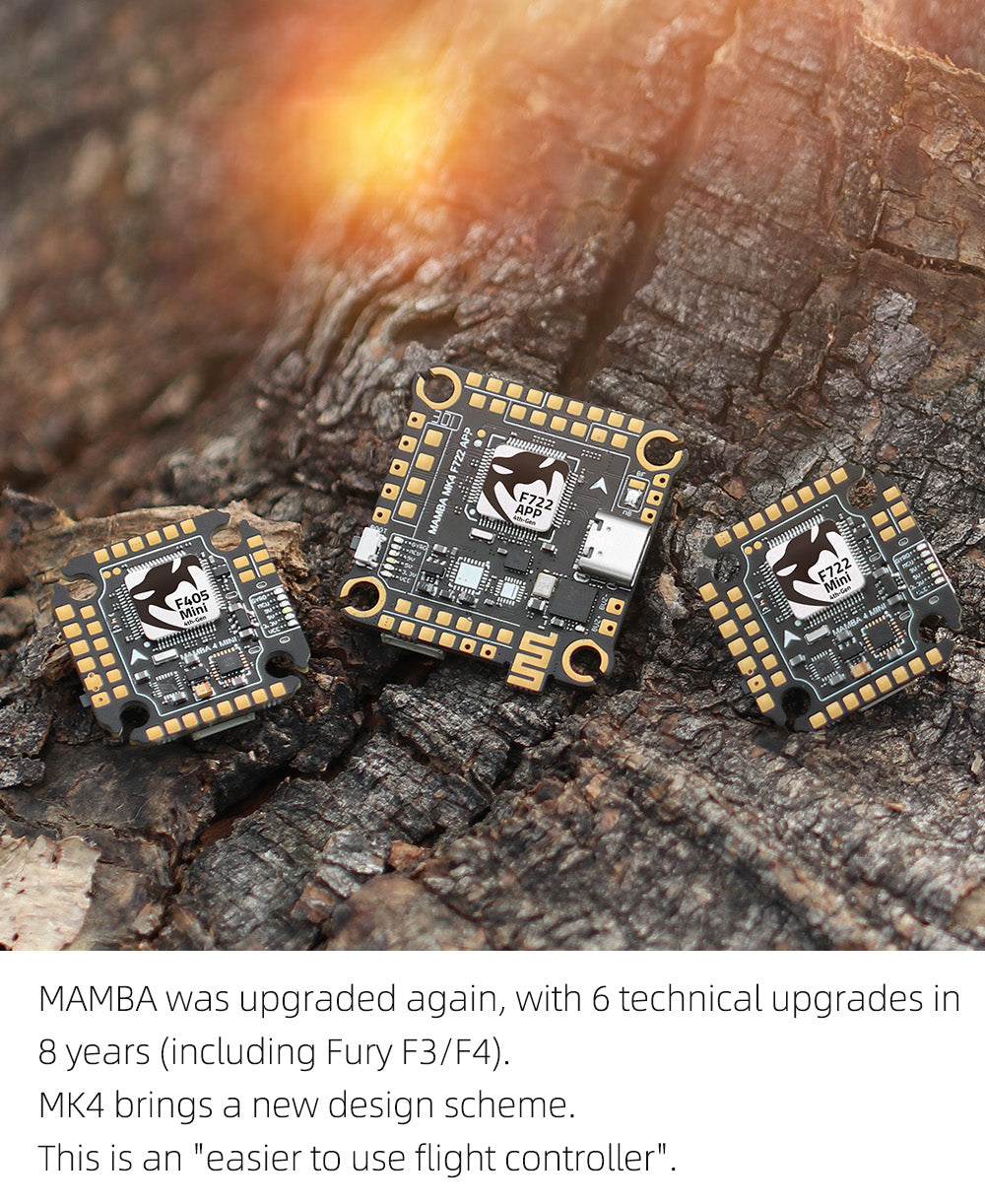

Diatone's Mamba MK4 (fourth generation) stack is a redesign of its already fantastic line of flight controllers and ESCs. Improvements include making the products easier to use by increasing soldering pad sizes by 30%, pad spacing by 100%, adding USB-C, additional UARTS, I2C, better filtered BEC, ESC support for 128K PWM, and more.
Now available with the Reactor 44A BLHeli_32 4-In-1 ESC. A robust and powerful ESC that won't let you down.
Features:

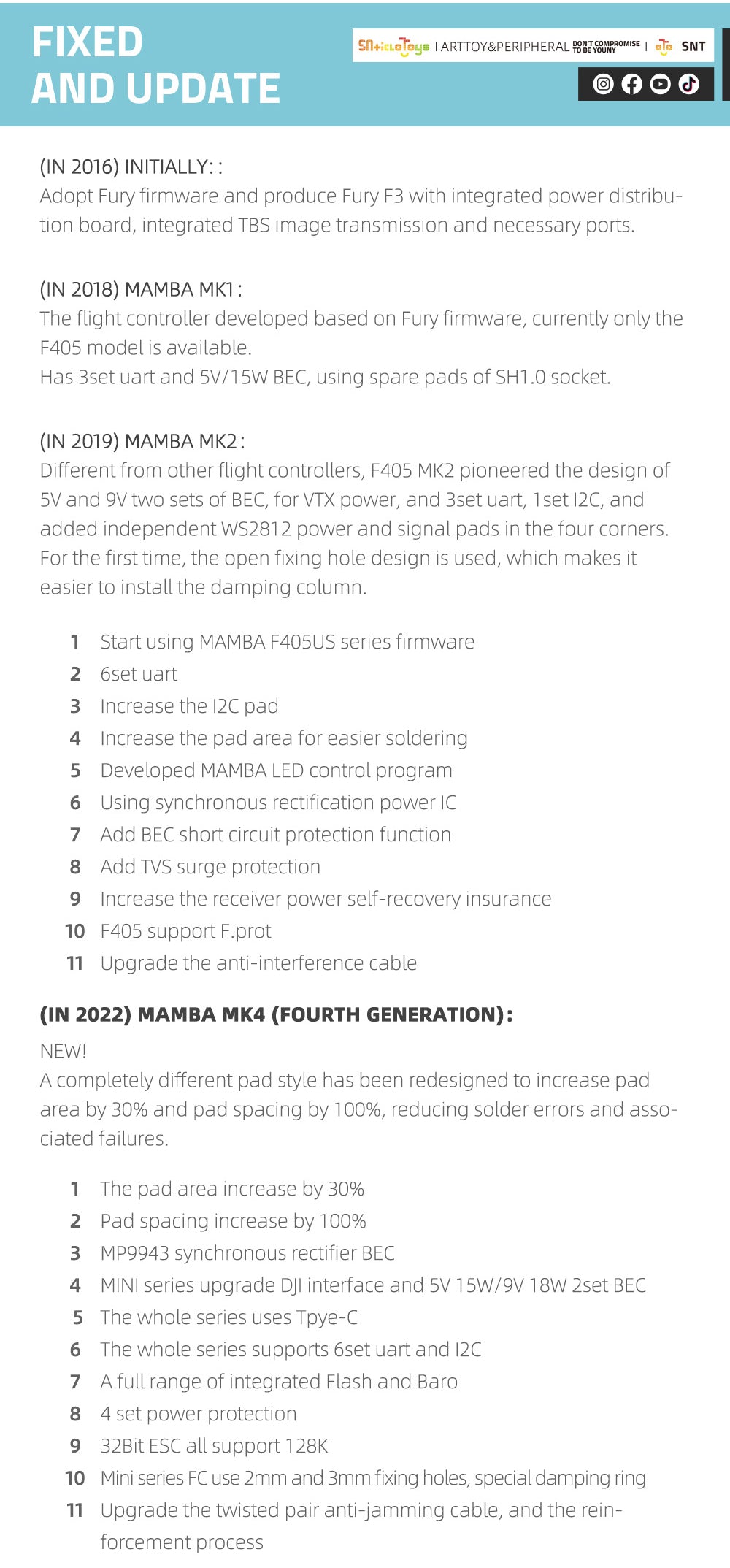

What's New?

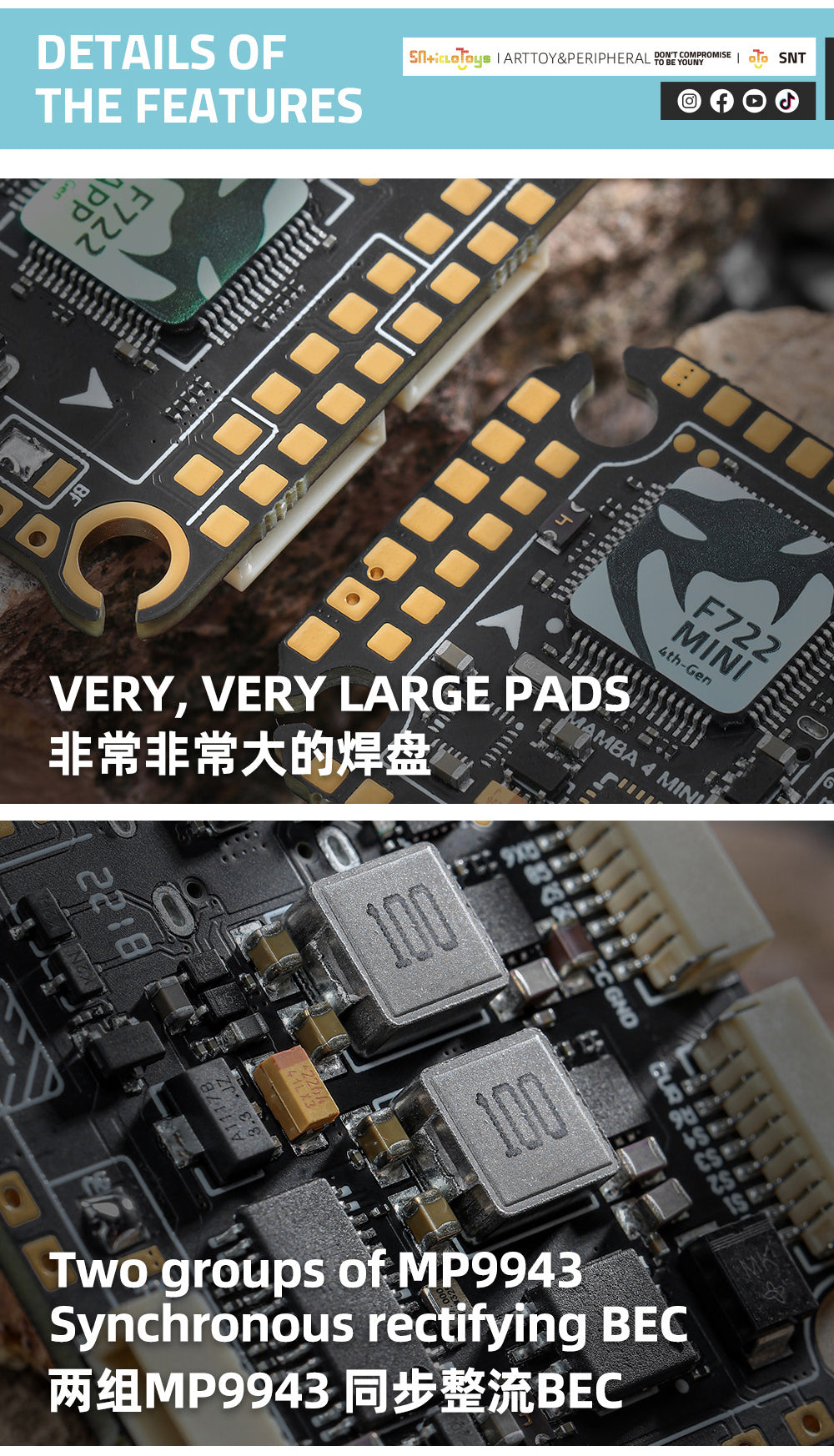

A completely different pad style has been redesigned to increase pad area by 30% and pad spacing by 100%, reducing solder errors and associated failures.
The pad area increased by 30%
Pad spacing increased by 100%
MP9943 synchronous rectifier BEC

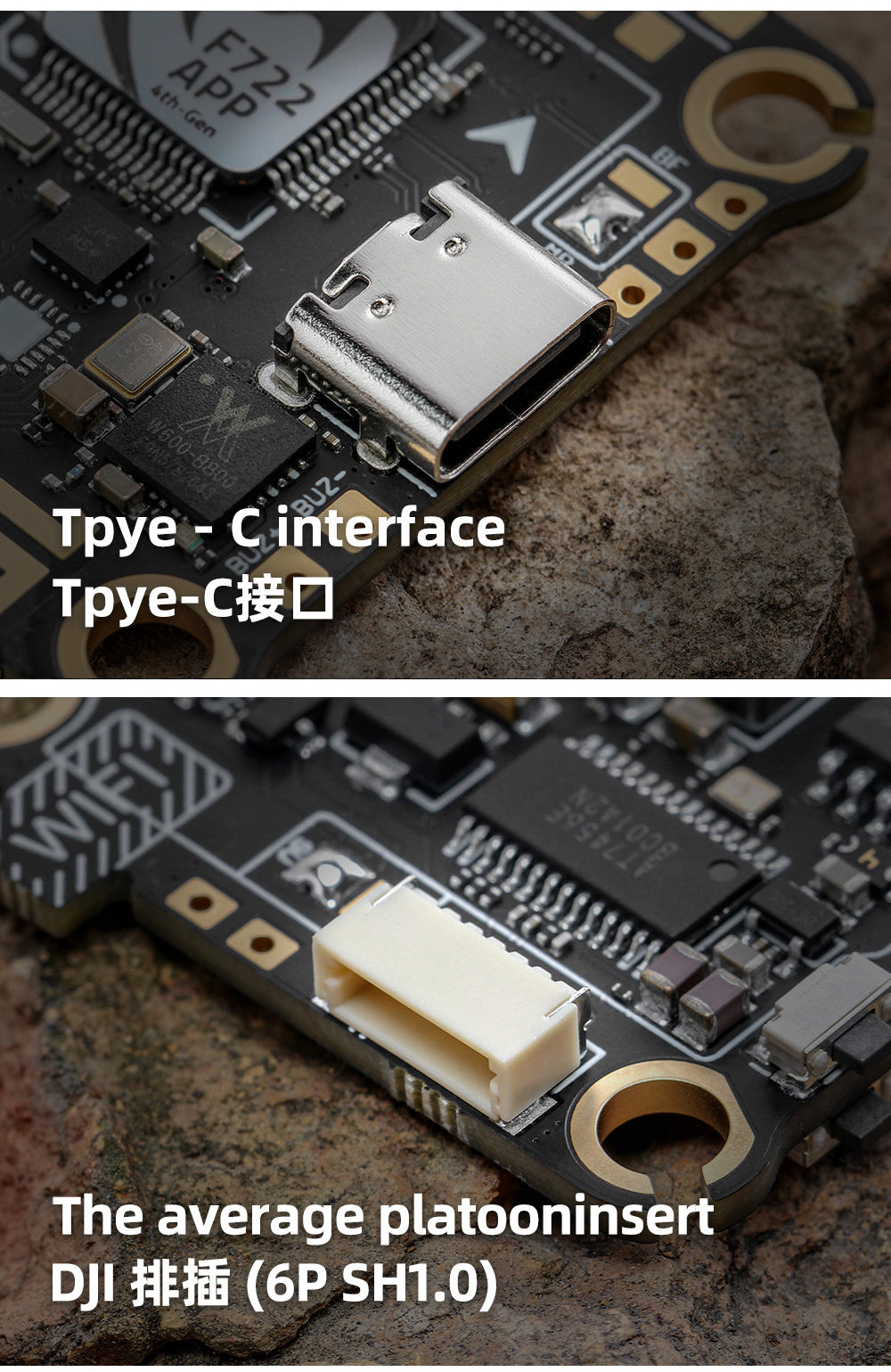

MINI series upgrade DJI interface and 5v 15W/9V 18W 2 set BEC
USB Type C
6 Set UART and I2C
4 Set Power Protection
32Bit ESC all support 128K

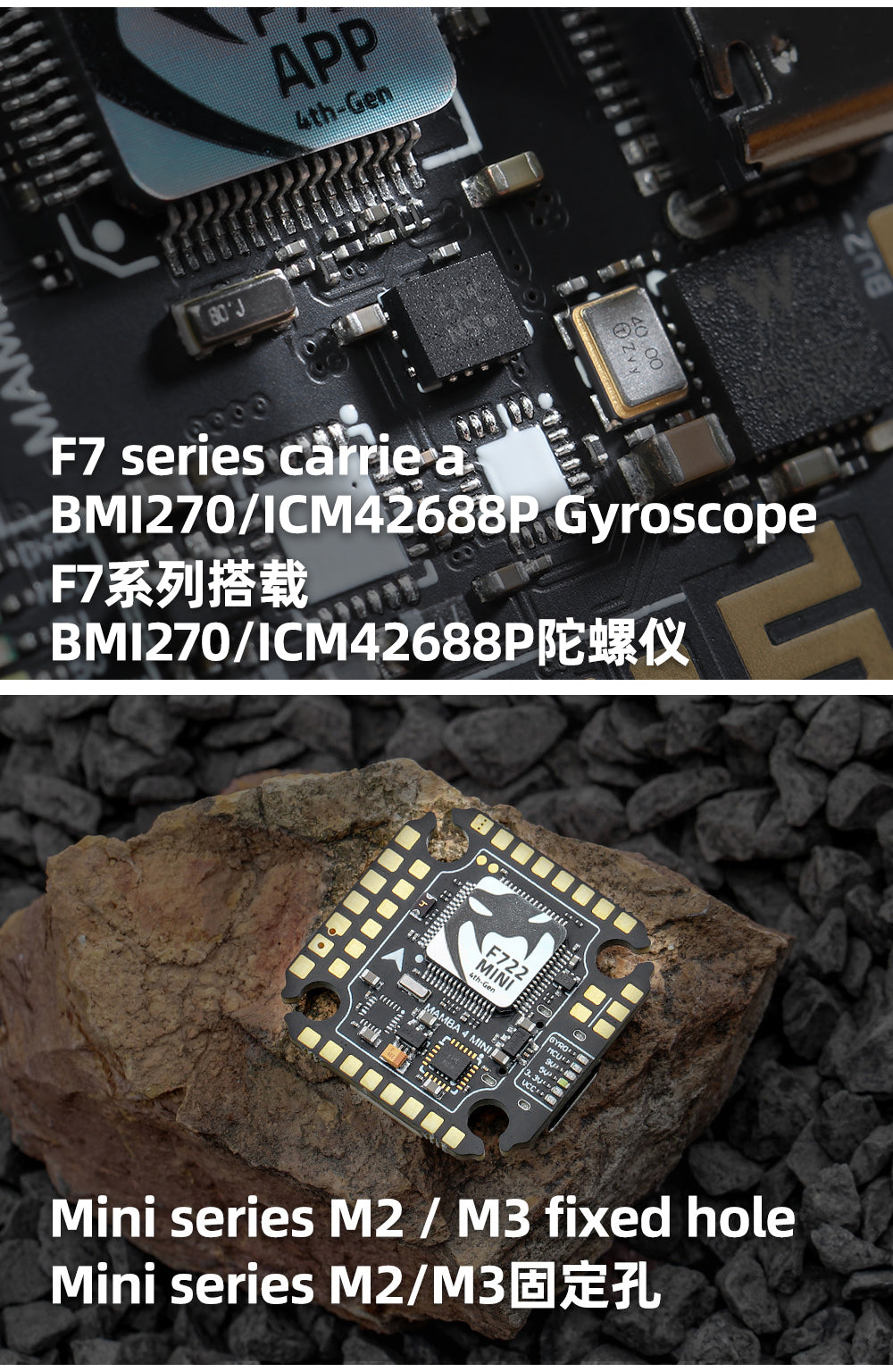

Mini series FC uses 2mm and 3mm mounting holes, special dampening ring
Upgrade the twisted pair anti-jamming cable and reinforcement process

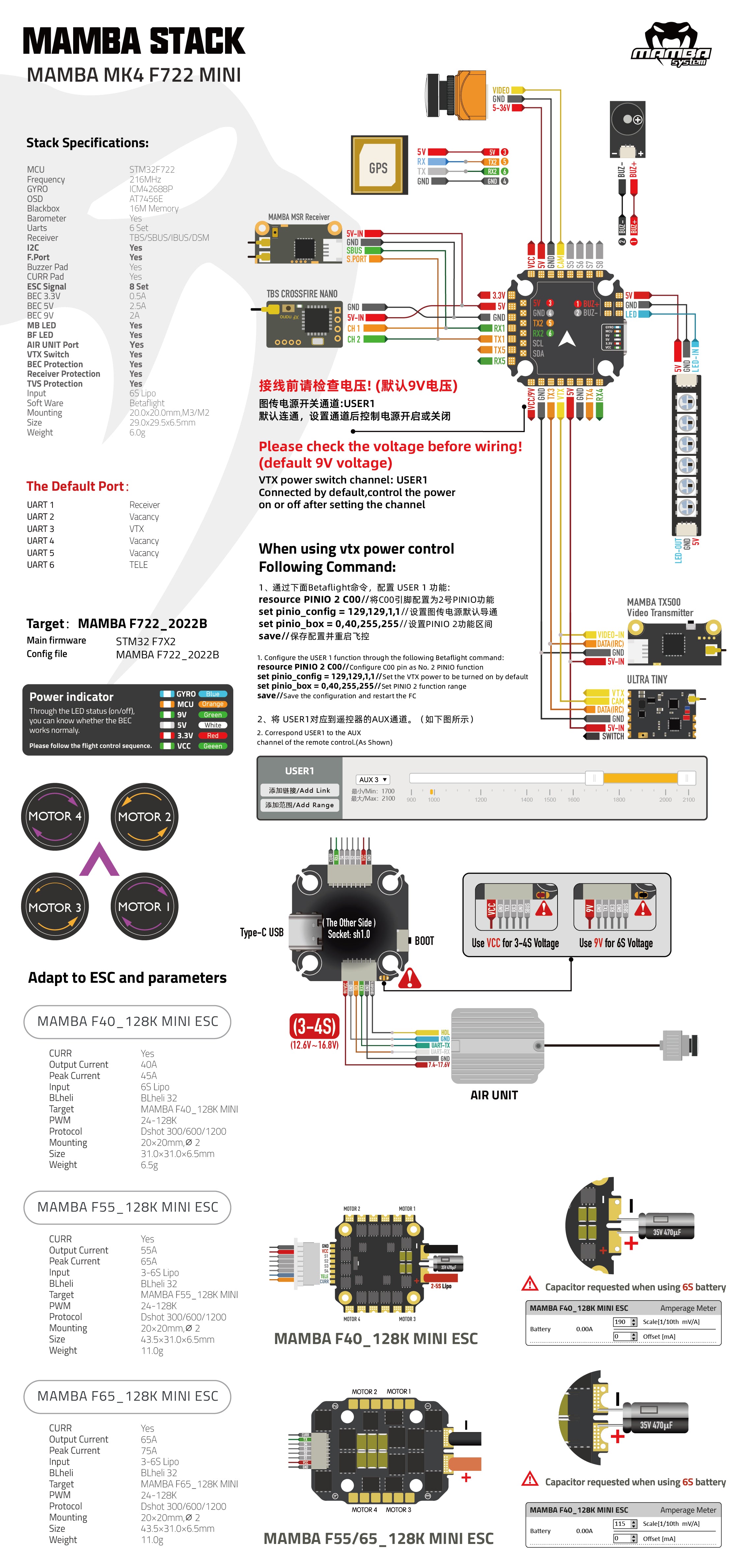

F722 MINI MK4 FLIGHT CONTROLLER:
MAMBA MK4 F722MINI
MCU: 216MHz STM32F722
GYRO:MPU6000
Target：MAMBA F722_2022A
OSD: Yes
Blacbox: 16M Flash Memory
Barometer: SPL06
Uarts: 6 Set
I2C: Yes
F.Port: Yes
RSSI: No
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 8 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED
AIR UNIT Port: Yes
WIFI: No
VTX Switch: Yes
Receiver Protection: Yes
BEC Protection: Yes
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 2.5A& 9V 2A
Input: 4~6S Lipo （16.8~25.2V)
Mounting size: 20mm,M2/M3
REACTOR 44A BLHELI_32 4-IN-1 ESC
Input Voltage: 4~6S LiPo (16.8V~25.2V)
Continuous Current: 44A
Burst Current: 54A (10S)
BEC: No
Target: BLHeli_32 MAMBA5_Reactor_44
Soft: DShot300/600/1200 / MAX2400(FETtec)
PWM: 24~128K
Mounting: 20x20mm/M2 M3
Includes:
1x Diatone Mamba MK4 F722 Mini Flight Controller
1x Diatone Mamba Reactor 44A BLHeli_32 4-In-1 ESC
1x Amass XT60
1x 470uF/35V Capacitor
1x Set of Wiring
1x Set of Silicone Damping
1x Set of ESC Isolation Columns
