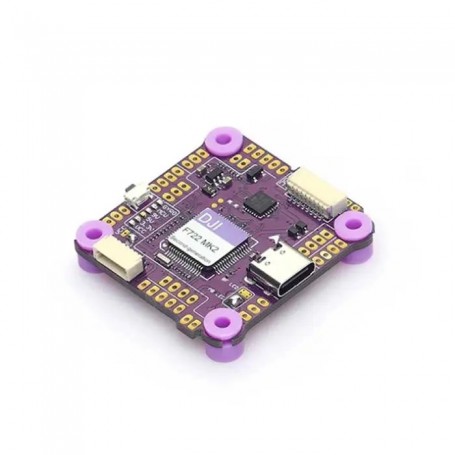

Diatone Mamba DJI F722 MK2 Flight Controller

Diatone Mamba DJI F722 MK2 Flight Controller

The Diatone Mamba DJI F722 MK2 Flight Controller is a powerful FC that is suitable with the DJI FPV System and is equipped with 216MHz STM32F722RET6 MCU, 6 UARTS, MPU6000, Dshot300/600/1200, BEC, and other cool features!

Note: To prevent the FC from overheating due to the STM32F722, please allow at least 5mm space on both sides of the FC (with nothing covered) to allow good air circulation.

Specifications;

MCU: 216MHz STM32F722RET6

GYRO: MPU6000

Barometer: Yes

OSD: Yes

Blackbox: 16M Flash Memory

UARTS: 6Set

ESC Soft: Dshot300/600/1200

ESC Telemetry: Yes

Power Led: Yes

LED Controller:BF LED/MB LED（ 4 Set 2812 LED）

F.Port: Yes

RSSI: Yes

Buzz: Yes

Input: 3~6S Lipo (12.6~25.2V)

TVS Protection: Yes

BEC:3.3V 0.5A& 5V 3A & （DJI）9V 3A

Mounting 30.5mm,M3

Diagram:

Includes:

1 x Diatone Mamba DJI F722 MK2 Flight Controller
