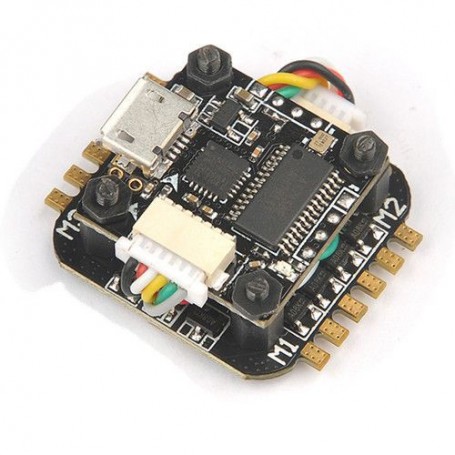

F3 MICRO - FC avec OSD + 4 in 1 ESC
F3 MICRO - FC avec OSD + 4 in 1 ESC
Inclus ESC 4 en 1 - 6A - BLHeliS
F3 MICRO - FC avec OSD + 4 in 1 ESC
Caractéristiques techniques:
Support programmable LED Sprit (turn off transponder before using)
Support BLheli/BLHELI_S suite Pass-through ready
Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Support the newest DSHOT ESC
Built-in voltage detection, alarm
Built-in Betaflight-OSD
Buzzer solder pin
LED_STRIP connector
Inclus ESC 4 en 1 - 6A - BLHeliS
Input voltage: 2S lipo
Con. Current: 6A
Peak Current: 10A (5S)
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G
BEC: NO
Driver: 3 in 1 MOS
Supports Dshot Oneshot multishot
Branchement récepteurs:
DSM and SBUS receiver input, please configure RX3(UART3) as input interface
DSM receiver power from 3.3V
SBUS and PPM receiver power from 5V
Dimensions:
Size: 20x20mm
Mounting hole: 16x16mm
Diameter: 2mm
Weight: 1.9g
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.0_OMNIBUS
Built-in ESC: 5V/0.5A
Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
Power supply: 2S lipo battery ( 6.5V-8.4V)
Suitable for 60mm-80mm mini brushless FPV Quadcopter frame
SS-F3-ESC
0.10 kg
