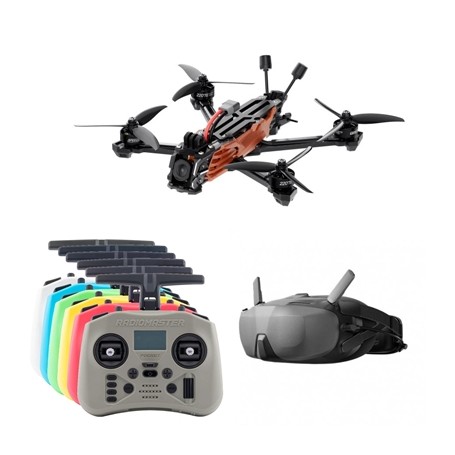

GEPRC Vapor-D5 HD O4 Pro GPS FPV Drone RTF

GEPRC Vapor-D5 HD O4 Pro GPS FPV Drone RTF

The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.

New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The DJI O4 Air Unit Pro’s larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.

Available in two models, Wide X and DC, to suit different flight needs.

Features:

DJI O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.

CNC aluminum lens housing for a durable, bold design.

GEPRC SPEEDX2 E-series motors for smooth, powerful performance.

Front lip design provides extra lens protection for confident flying.

Wider 5mm carbon fiber arms for increased durability and a sleek build.

Specifications:

Model: Vapor-D5 O4 Pro

Frame: GEP-Vapor-D5 O4 Pro frame

Wheelbase: 230 mm

Top Plate: 2.0 mm

Middle Plate: 2.0 mm

Bottom Plate: 2.5 mm

Arm Thickness: 5.0 mm

FC: GEP-F722-HD v2

MCU: STM32F722

Gyro: ICM42688-P(SPI)

Barometer: YES

OSD: Betaflight OSD w/AT7456E

ESC: TAKER H60_BLS 60A 4IN1 ESC

VTX: DJI O4 Air Unit Por

Camera: O4  Pro Camera

Antenna: O4  Pro original antenna

Connector: XT60

Optional GPS: GEP-M10 GPS

5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV

5-inch Propeller: GEMFAN 5136

Vapor-D5 O4 Pro PNP  Version Weight: 428 g±5g

Receiver: PNP/GEPRC ELRS24/TBS Nano RX

Recommended Battery: 6S LiPo1300mAh – 1800mAh

Flight Time: 14-19 min

Includes:

1x GEPRC Vapor-D5 HD O4 Pro GPS FPV Drone

1x Radiomaster Pocket Crush ELRS includes batteries / Color from stock

1x DJI Goggles N3

1x Gaoneng GNB 1530mah 6S battery

1x ToolkitRC C6 Lipo 1-6S 50W Charger AC

1x Ready to fly out of the box

1x Setup offered by Helifree RC
