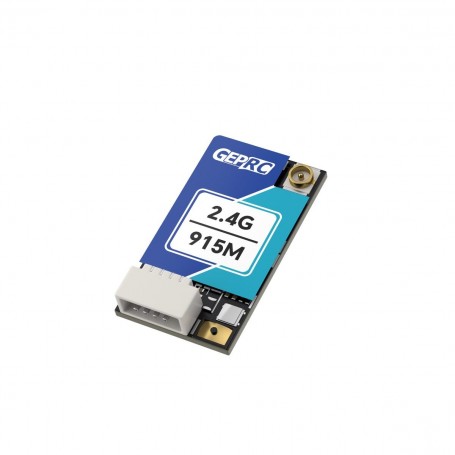

GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver

GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver

The GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver is a new Dual-Band system developed from the ExpressLRS open-source project. It is designed based on Semtech’s third-generation LR1121 RF chip, supporting 150 – 960MHz (sub-GHz) and 2.4GHz bands for Dual-Band transmission.

The ELRS Nano 915M/2.4G Dual-Band Receiver features dual LR1121 chips, allowing easy switching between 915M , 2.4G when paired with 915M/2.4G antennas. It is fully compatible with existing 915M and 2.4G ELRS TX modules.

The TCXO temperature-compensated crystal oscillator ensures reliable performance across temperature variations, with telemetry power up to 100mW. The built-in WiFi antenna facilitates effortless firmware updates, and the SH1.0 connector simplifies installation.

Features:

Advanced ExpressLRS 915M/2.4G dual-frequency system

 Based on Semtech’s third-generation LR1121 RF chip

 Compact at 11.1×20.4×5.2mm and weighing just 0.95g

 Supports 915M, 2.4G operating mode

 Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures

TLM up to 100mW

 Refresh rate up to 1000Hz

 Supports WiFi firmware updates

 Includes an SH1.0 connector for easy installation

Specifications:

Model: GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver

Dimension: 11.1×20.4×5.2mm

Weight: 0.95g (only receiver)

Chips: ESP32-C3, LR1121

Crystal Oscillator: TCXO

Frequency Bands: 915MHz(FCC),868MHz(EU),2.4GHz(ISM)

Refresh Rate: 25Hz-1000Hz

Operating Voltage: 5V

Antenna Connector: ipex1

TLM Power: 100mW

Firmware: GEPRC 900/2400 Single Dual-Band RX

 Includes:

1 x ELRS Nano 915M/2.4G Dual-Band Receiver

1 x 915M/2.4G dual-band T-antennas

1 x Heat shrink tube

1 x 4-pin silicone connect cable

1 x User manual
