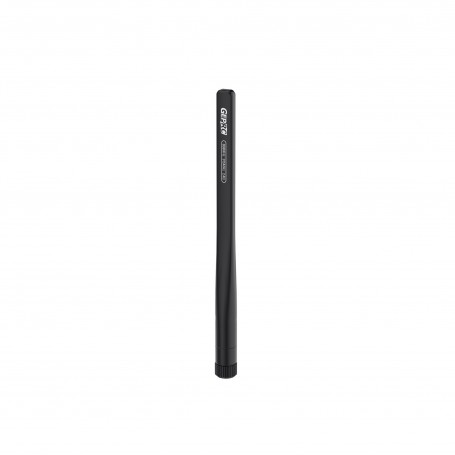

GEPRC 868MHz/915MHz 2.4G Tri-Band Stick Antenna

GEPRC 868MHz/915MHz 2.4G Tri-Band Stick Antenna

The GEPRC 868MHz/915MHz/2.4GHz tri-band stick antenna features a PCB design with linear polarization for omnidirectional signal reception. It maintains strong connectivity during dynamic flight maneuvers. With excellent cross-polarization suppression, it performs well in high-interference environments, minimizing signal disruption.

Features:

1.Triple-band design, 868MHz covers 860-870MHz, 915MHz covers 900-930MHz, 2.4Gz covers 2400-2500MHz

2. Optimized for stronger signal reception at a vertical angle

3. Durable, low-drag oval shape with an injection-molded ABS shell

4. High-quality SMA connector minimizes signal loss

5. Each antenna undergoes testing with a spectrum analyzer to ensure VSWR compliance with standards

Specifications:

Model: GEPRC 868MHz / 915MHz / 2.4GHz Tri-Band Stick Antenna

868MHz Center Frequency: 865MHz

915MHz Center Frequency: 915MHz

2.4Gz Center Frequency: 2450MHz

Frequency Range: 868MHz / 915MHz / 2.4Gz

Polarization: Linear

868MHz Gain: 2.8dBi

915MHz Gain: 2.82dBi

2.4Gz Gain: 2.97dBi

VSWR: ≤1.5

868MHz Radiation Efficiency: 49%

915MHz Radiation Efficiency: 51%

2.4Gz Radiation Efficiency: 68%

Cross-Polarization Suppression: -25dB

Length: 172mm

Antenna Type: PCB

Weight: 11.2g

Housing Material: ABS

Connector: SMA

Includes:

GEPRC 868MHz / 915MHz / 2.4GHz Tri-Band Stick Antenna x1
