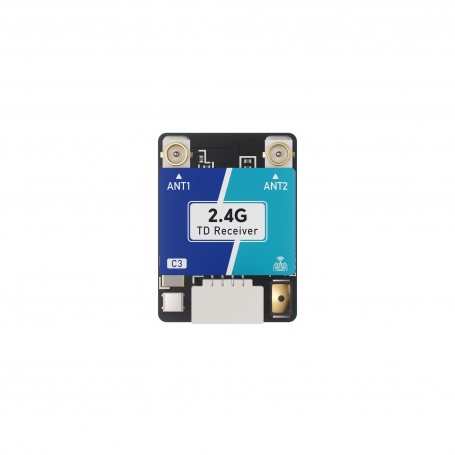

GEPRC ELRS Nano DUAL 2.4G C3 True Diversity Receiver

GEPRC ELRS Nano DUAL 2.4G C3 True Diversity Receiver

GEPRC ELRS Nano DUAL 2.4G True Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price.

The ELRS Nano DUAL 2.4G True Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes.

Features:

The size is small, weighing only 1.1g

WIFI Upgrade firmware

ELRS open source project, remote control

Maximum refresh rate of 1000Hz

Two independent RF receiving links, true diversity receiver

The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance

SX1281,ESP32-C3 High-performance Chip

Specifications:

Model: GEPRC ELRS Nano DUAL 2.4G True Diversity Receiver

Size: 17*13mm

Weight: 1.1g (RX only)

Chips:ESP32-C3，SX1281x2

Crystal Oscillator: TCXO

Frequency Band: 2.4GHz ISM

Refresh Rate: 25Hz-1000Hz

Input Voltage: 5V

Antenna Connector: ipex1

Indicator Light: RGB light

TLM Power: 10mW

Firmware: GEPRC Nano True Diversity 2.4GHz RX

 Includes:

1 x ELRS Nano DUAL 2.4G True Diversity Receiver

2 x 2.4G T-Antennas(ipex1 80mm)

1 x Receiver silicone cable(SH1.0 4pin 100mm)

1 x Heat shrink tube

1 x User manual
