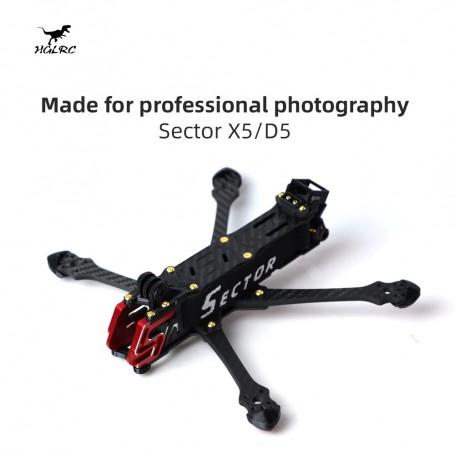

HGLRC Sector D5 FR 5-inch Freestyle FPV Frame
HGLRC Sector D5 FR 5-inch Freestyle FPV Frame
Features:
*Replaceable arms for quick disassembly without taking apart the whole frame
*A fixed power outlet for convenience and protecting your power cable from cutting by propellers
*Dust-proof straps covering both sides to better protect your rig and keep them clean
*CNC aluminum side plates combined with 3D printed parts to make your drone look dope!
Brand name :HGLRC
Model :Sector D5 Freestyle Frame
Material :3K Carbon Fiber
Type:5-inch
Wheelbase:225 mm
Size:230 * 184 mm
Top plate: 2.5 mm
Middle plate: 2 mm
Bottom plate: 2.5 mm
Top and middle plate space :25mm
FC mounting hole :30.5mmx30.5mm/20x20mm M3
Camera mount :19 x 19mm
Motor mounting hole :M3X16
Weight: 121.7g
Shipping List:
1 x 2.5 mm Top plate
1 x 2 mm Middle plate
1 x 2.5 mm Base plate
2 x 5 mm front Arm
2 x 5 mm black Arm
1x 2.5mm Arm fixing plate
2x 2mm Camera side panel
1x Frame head CNC aluminum parts (one pair)
1x TPU Black GOPRO fix mount
1x TPU black SMA antenna mount
1x TPU black GPS mount
1x TPU black base plate protection cover
4x TPU black arm protection
4x TPU Red footpad
2x Battery straps 20x250mm
1x Battery Anti-slip pad
1x Screw Accessory package
Recommended parts :(Not included)
FC :ZEUS F722 MINI
Motor:22XX / 23XX
ESC:Zeus45A
Camera:19 x 19mm
Propeller :5 inches
