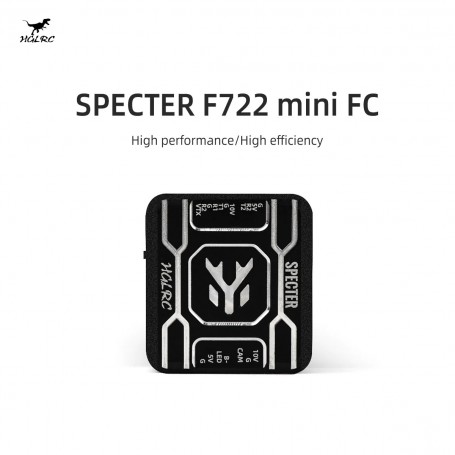

HGLRC SPECTER F722 mini MPU6000 Gyro DJI HD/VTX Freestyle/Racing FPV

HGLRC SPECTER F722 mini MPU6000 Gyro DJI HD/VTX Freestyle/Racing FPV

FC Features:

1. The main control adopts STM32F722 high-performance processor, with a computing speed of up to 216 MHz, providing smoother control, better hand feel, and faster response speed.

2. The flight control gyroscope uses high-performance MPU6000 to improve the stability of use and reserves 42688 gyroscope pads.

3. Full module direct plug-in connection, plug and play, no soldering pads required, achieving modularity.

4. Personalized CNC heat sink shell prevents debris from entering the interior of the flight control and improves usage efficiency.

5. 16MB large-capacity black box to ensure adequate recording of flight data.

6. Integrated BF wireless Bluetooth parameter adjustment, connect to SPeedyBee APP to adjust serial port, PID and other flight control parameters anytime and anywhere.

7. Equipped with a 10V electronic switch, the on/off mode can be set through BF, which is convenient for solving the heating problem of long-term power-on

8. Nano-scale coating is added to both sides of the board, and its main functions are waterproof, moisture-proof and corrosion-proof.

Specification:

Flight control firmware: HGLRCF722 MINI

MCU: STM32F722

GYRO：MPU6000

OSD:AT7456E

Barometer: BMP280

Black box: 16MB

UARTS: 5 groups

BEC: 10V2A/5V2.5A

Flight control size: 37mmx34mmx9.8mm

Installation hole position: 20x20mm, M3

Weight:18g

Package Includes:

1x HGLRC SPECTER F722 mini flight controller

1x 30AWG 25mm double-ended SH1.0-8P cable

1x 30AWG 70mm single-head SH1.0-7P/single-head SH1.0-6P DJI cable

1x 30AWG 70mm single-head SH1.0-7P/single-head GH1.25-6P VTX cable

1x 30AWG 60mm single-head SH1.0-3P/single-head 1.25-3P camera cable

1x 30AWG 100mm single-head SH1.0-4P receiver cable

4x M3*20 hexagon socket screws
