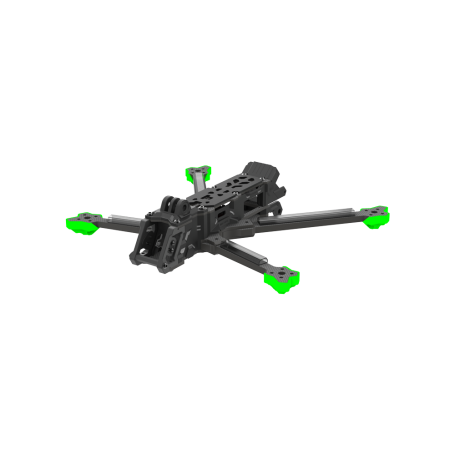

Nazgul Evoque F5 V2 Frame Kit

Nazgul Evoque F5 V2 Frame Kit

The old days are over, getting your electronics full of dirt and wet grass every time you crash.

Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits.

Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Highlights:

V1 to V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission

Specially Designed Heatsink for DJI O3 Air Unit

New Camera Mount for a wider camera FOV with TPU damping inserts

New Side Panels to perfectly fit the O3 Air Unit in the back

New Dual 5.8G VTX Antenna TPU mount

Latest Nazgul Frame Upgrades for Maximum Protection

Specifications:

Product Name: Evoque F5 V2 Frame Kit

Frame wheelbase: 225mm (Squashed X) / 223 mm (DeadCat)

Frame Dimension: L258*W199*H25 mm (Squashed X) / L190*W136*H36 mm (DeadCat)

Frame Body Dimension: 36mm

Arm Thickness: 6mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Camera Plate Thickness: 3mm

Motor Mounting: 16x16mm

VTX Mounting: 25.5*25.5/Φ1.6mm

Weight: 150grams (Included no TPU Parts)

Package included:

1 x Evoque F5 V2 Frame Kit

1x O3 Air Unit Heatsink

2x O3 IPEX to RP-SMA Antenna Pigtails

1 x O3 Dual Antenna TPU

1 x GoPro TPU Base Mount

1 x Screw Bag

4 x TPU Armguard

1 x Front Bumper TPU

1 x Rear Bumper TPU

2 x Anti-slip Battery Pad

2 x Battery Strap (20*250mm)
