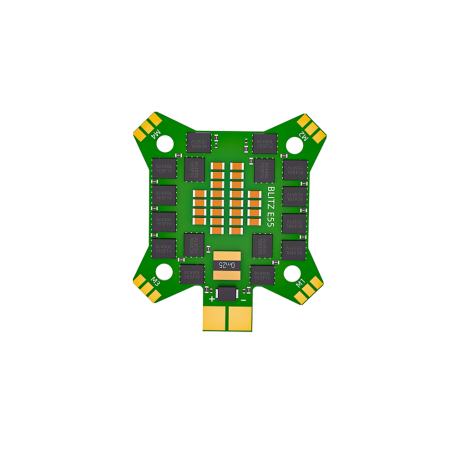

BLITZ E55 4-IN-1 ESC

BLITZ E55 4-IN-1 ESC

When using this ESC on a 7-10 inch drone, please add an additional capacitor to prevent overloading the onboard capacitor of the ESC.

This precaution will help ensure optimal performance and reliability of your drone's power system.

ESC specification:

Mounting Holes: 30.5*30.5mm/Φ4mm

Weight: 15.3g

Supports 2-6S lipo input

MCU：G071

Constant: 55 Amps

Burst: 65 Amps

Current sensor: Yes

BEC: No

Current rate: 200

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Target: IFLIGHT_BLITZ_G2 / IFLIGHT_BLITZ_G3 32.9

Includes:

1 x BLITZ E55 4-IN-1 2-6S ESC

1 x Power cables & ESC signal wires
