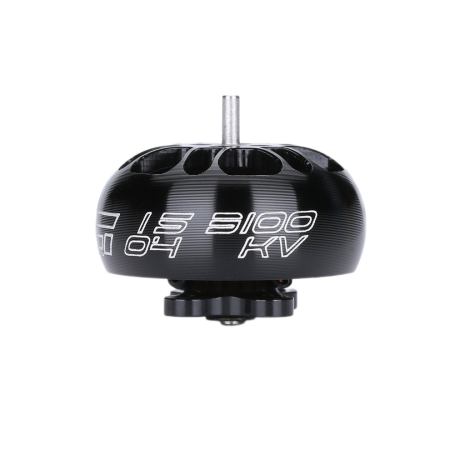

XING 1504 FPV Motor 3100KV (4X)

XING 1504 FPV Motor 3100KV (4X)

Model: XING 1504 Black Motor

KV: 3100KV

Weight(included wire): 12.3g

Dimension: φ21.6*18.5mm

Interphase Resistance: 247mΩ

Input Volts: 16.8V

Peak Current: 12.44A

Max Watt: 207W

Mounting Holes: 9*9 φ2mm

Rotor Specifications: Unibell

Shaft Diameter: 1.5mm

Shaft Protruding Length: 4.0mm

Configuration: 12N14P

Bearing Type: NSK

Bearing Specification: φ5*φ2*2.5

Winding: Single Strand copper winding

Package includes:

4 x XING 1504 3100KV Motor

16 x M2*5 screws

8 x M2*7 screws
