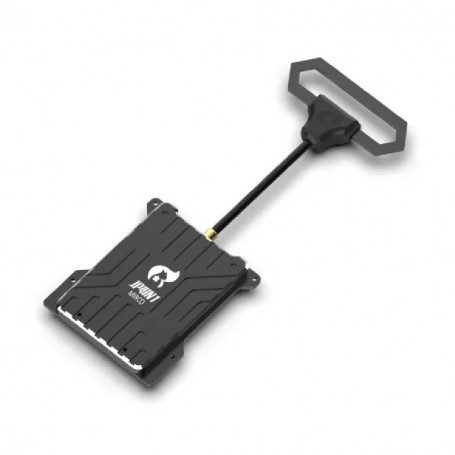

Jumper T20 JP4IN1 Micro Multi-Protocol Radio Module

Jumper T20 JP4IN1 Micro Multi-Protocol Radio Module

This multiprotocol module incorporates four RF chips into one transmitter module and supports pretty much all of the communication protocols used in the RC hobby.

With it you can control everything from a single radio; from toy grade Syma models to FrSky racing drones or Spektrum BNF aircraft.

A full list of compatible protocols can be found in the Jumper JP4IN1 Manual.

This module is plug and play with Jumper T20/T20S radio.

RF chips integrated in this multiprotocol module are: CC2500, NRF24L01, A7105 and CYRF6936

Specifications:

Brand name: Jumper

Item name: JP4IN1 micro transmitter module

Working voltage: 6-9v

Working current: <=100ma

Operating frequency: 2.4G ISM band

RF power: +22DBM

Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)

Module bay compatibility: T20S

Net Weight: 42g (including antenna)

Firmware updatable: Yes, via USB

RF Chip Data:

Cyprus Semiconductor CYRF6936: DS M/DS M X, Walkera Devo

Texas Instruments CC2500: FrSky, Futaba SFHSS

Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan

Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN, and most other Chinese models

Link to Github repository:

https://github.com/pascallanger/DIY-Multiprotocol-TX-Module

Includes:

1x Jumper T20S JP4IN1 Micro Multiprotocol Module

1x Antenna

NOTE:  If you buy this module, you do not need to purchase the T20S External CNC Module Adapter as it is included with this module.
