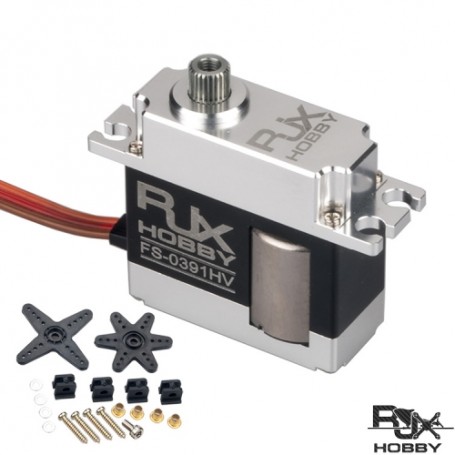

RJXHOBBY FS0391HV Digital HV Servo

RJXHOBBY FS0391HV Digital HV Servo

The RJX FS0391HV provides the ultimate in performance for standard size servos.

Cranking out a whopping 10.6kg and 0.03sec transit speed @ 8.4V, you will be hard pressed to find a better servo for your money.

The massive torque and lightning fast speed makes this servo ideal for use in 3D helicopters as a cyclic or tail servo, scale airplanes and even large cars/trucks.

The case is machined from aluminum alloy providing the ultimate in durability and offering excellent heat dissipation.

The FS0391HV is a true high-voltage servo capable of operating at a constant 8.4V, yet still yields impressive numbers at as low as a 6V input.

Special Narrow Band version for Cyclic or Tail servo used in Helicopters.

Specifications:

 Color: Black.

Dimension: 15x36x35.5mm

Weight: 50g

Frequency: 1520µs/333hz

Gear Type: Metal Gear

Operation Voltage: 6V-8.4V

Motor Type: Coreless motor

Torque:

8.4kg/cm(116.7oz/in)@6V

9.6kg/cm(133.3oz/in)@7.4V

10.6kg/cm(147.2oz/in)@8.4V

Speed :

0.035(sec/60°)@6V

0.032(sec/60°)@7.4V

0.03(sec/60°)@8.4V

Package Included:

1x FS0391HV Servo

2x Servo Arms

4x Rubber Grommets

Screws and Washer
