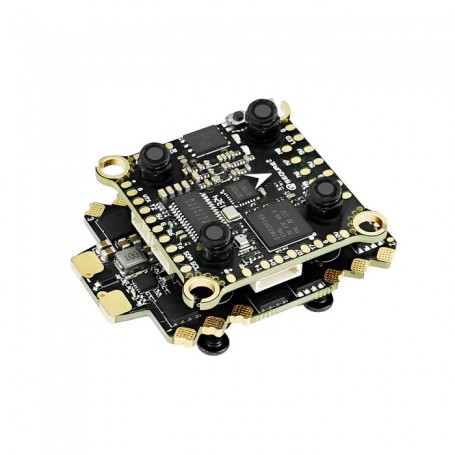

SEQURE H743 & E70 G1 Stack FC MPU6000 70A 128K ESC 4-8S

SEQURE H743 & E70 G1 Stack FC MPU6000 70A 128K ESC 4-8S

Equipped with a high-performance STM32H743 processor, the Sequre H743 & E70 G1 4-8S Stack offers up to 480MHz operating frequency for rapid control response.

Utilizing the MPU6000 gyroscope, this flight controller enables precise gesture sensing and improved system reliability.

The E70 G1 4in1 ESC features a STM32G071 processor, AM_32 firmware, 2-8S voltage input, and a single-channel continuous current of 70A (with a peak of 150A).

SEQURE H743 FC:

Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.

Adopts MPU6000 gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.

SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.

Reserve 6 UARTS to meet the needs of most devices.

It can control up to 8 motors, easily constructing X8.

Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage,allowing the DJI O3 and analog VTX to plug in for use directly.

Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.

E70 G1 4IN1 ESC AM32:

STM32G071 high-performance processor, using Ai_32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A.

Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.

High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time.

High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure.

Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel.

PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem.

Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty.

20x20mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.

Package Includes:

1 x SEQURE H743 FC

1 x E70 G1 4IN1 ESC (AM32)

1 x 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable

1 x 30AWG 100mm Single-head SH1.0-4P Flat Cable

1 x 60mm Length 12095 5V Buzzer

 10 x M3x8mm Silicone Shock-absorbing Washer(Black)

2 x 12AWG 100mm Power Cable (black/red)

1 x XT60H-M Black Male Connector

1 x 35V 680UF Solid Capacitor

4 x M3x25mm Screw

4 x M3 Sleeve Nut
