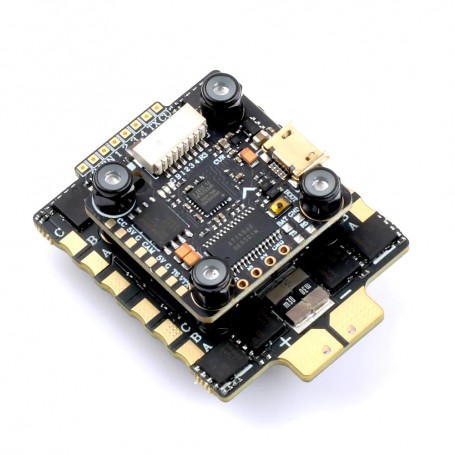

Skystars F7RS STACK MVP60A F4 BLHELI_32 60A 3-6S 4IN1 ESC - 20 X 20mm

Skystars F7RS STACK MVP60A F4 BLHELI_32 60A 3-6S 4IN1 ESC - 20 X 20mm

Skystars F7RS + MVP60 is a powerful stack designed for racing and freestyle 5" drones. At the heart of the flight controller is the F722 processor with MPU6000 gyro.

The flight controller also includes a 5V 3A BEC, OSD and 16MB of blackbox memory. The ESCs support power from 3-6S Lipo batteries and can handle current up to 60A (80A peak).

Featuring a 32-bit processor, the ESCs use BlHeli_32 firmware that supports telemetry, bidirectional DShot and PWM frequency up to 128KHz.

The stack has a 20x20mm mounting hole spacing with an M3 hole

SKYSTARS F722RS 20X20 Flight Controller:

MCU: STM32F722RGT6 216MHz

IMU: MPU6000 (SPI)

OSD: Betaflight OSD & DJI HD OSD (UART6)

6 hardware UARTS (UART1,2,3,4,5,6)

Barometer: NO

Buzzer Pad: YES

5V 3A

Input Voltage: 3-6S Lipo

Blackbox: 16MB

Firmware: SKYSTARS F7RS

Dimensions: 26x28x7mm

Mounting Holes: Standard 20mm/M3 square to center of holes

Weight: 4.9g

Skystars MVP60A F4 32Bit 3-6S 20×20 4in1 ESC:

Input voltage: 3-6S LiPo

Con.Current: 60A

Peak Current: 80A≥ 10S

Firmware: BLHeli_32

Support: Dshot 600/1200

Mounting hole : 20X20 mm/M3

BEC: No

Product size: 35.8*47*6.5mm

Weight: 17g

Includes:

1 x SKYSTARS F722RS 20x20 Flight Controller

1 x SKYSTARS MVP60A 32Bit F4 3-6S 20x20 4in1 ESC

Wiring diagram:
