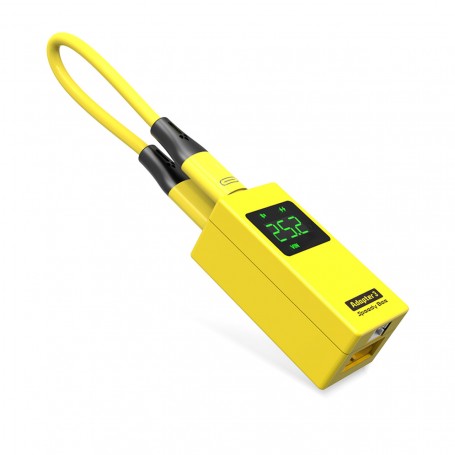

SpeedyBee Adapter 3

 SpeedyBee Adapter3



Features:



Wireless Firmware Flasher & Configurator

30W Fast USB Charger

Wireless Blackbox Analyser

Wireless ESC Flasher

1-6S LiPo Checker

iOS & Android Compatible

USB-C & Micro USB



Turn your smartphone into your mobile FPV companion

Connect to the SpeedyBee mobile app, and configure your flight controller anytime, anywhere. Or flash the latest version of Betaflight/Emuflight/INAV in just 2 minutes before your flight session. The choice is yours.



Analyzing Blackbox data has never been easier

No laptop, no separate app, no hassle. Connect your quad to the SpeedyBee mobile app and analyze your Blackbox data* in just 1.5 minutes after a flight. Get the most out of your practice sessions now.

*Currently supports Betaflight and Emuflight only



Configure your BLHeli_S ESCs wherever you want

Why stop at the flight controller? Change your BLHeli_S ESCs setting or update the firmware anytime, anywhere. Broken motor? Solder it up, take your smartphone out, and configure your motor direction wirelessly with the latest SpeedyBee app

- now supporting BLHeli_32 and BLHeli_S ESCs.



Your LiPo batteries = Powerful 30W power banks

Connect SpeedyBee Adapter 3 to a LiPo battery and charge your mobile phone* and tablets when you need them the most. Supports mainstream QC3.0/AFC/Apple 2.4A (iPhone 6s and above) and other fast charging protocols with charging power up to 30W. Complete with over-current protection, short-circuit protection and over-temperature protection to protect your gadgets from unwanted accidents.

*Charging function requires 2S LiPo and above.



Forgot your LiPo checker? Don't Worry

Connect your 1S - 6S LiPo and the display will immediately show your battery voltage and the remaining power with a specific colour code*. The built-in beeper will alert you if the remaining power is less than 40% to help extend your battery lifespan.

*GREEN(>80%), WHITE(40-80%) and RED(<40%).



WiFi + Bluetooth = the best of both worlds

Use Bluetooth for quick access to your firmware configurator, or switch to Wi-Fi to flash firmware or download Blackbox data at a higher speed.



Specifications:



Input Voltage: 1-6S(3.8V+ for 1S)

Power Input Connector: XT60-Male, PH2.0 male

Required Mobile Device System Version: Android 7.0+ | iOS 12.0+

Supported SpeedyBee App Version: V1.6.1 + for iOS | V1.5.6+ for Android

Maximum Output Current for flight controllers: 700mA @5V

Fast Charging Output interface: USB A Port

Minimum Input Voltage for Charging output: 7.4V(2S LiPo)

Supported Fast Charging Protocol: QC3.0/QC2.0, AFC, FCP, SCP/High SCP, PE2.0/PE1.1, SFCP

Max Fast Charging Current: 3.5A

Max Fast Charging Power: 30W

Case Material: ABS + PC

Liquid Silicone Cable Length: 12.4cm

Dimension(Main Body): 24.8x21.8x53.6mm

Net Weight: 35g
