TBS TRACER NANO TX STARTER SET
TBS TRACER NANO TX STARTER SET
En course, chaque microsecondes comptent. Etes-vous prêt pour une véritable liaison radio à 250Hz?
Grâce à la technologie 2,4GHz, TBS a pris le meilleur du Crossfire et l'avons réduit au minimum pour l'accélérer.
Le résultat final: des antennes plus petites, plus de vitesse, une autonomie de plusieurs jours
TBS TRACER NANO TX STARTER SET
En course, chaque microsecondes comptent. Etes-vous prêt pour une véritable liaison radio à 250Hz?
Grâce à la technologie 2,4GHz, TBS a prit le meilleur du Crossfire et l'avons réduit au minimum pour l'accélérer.
Le résultat final: des antennes plus petites, plus de vitesse, une autonomie de plusieurs jours
INTRODUCING TBS TRACER - 2.4GHZ "CROSSFIRE" RADIO SYSTEM
250Hz: Fastest available radio and telemetry link
Brand new 2.4GHz technology not found in any other radio link
3ms end to end latency
Crossfire engine for ultimate compatibility and functionality
"JR" and "LITE" form factor transmitters
Nano-sized receiver with antenna diversity
15mi+/25km+ range
For drones, planes, helicopters, cars, and boats
THE FASTEST RADIO LINK
In a race, microseconds count. Goggles down, thumbs up - are you ready for a two-way 250Hz radio link? End to end latency: basically zero (okay, 3ms!). Range: for days. Nothing comes close! We took the best from Crossfire and shrunk it down & sped it up.
NOT JUST FOR RACE AND "FREERANGE" PILOTS
A single operation mode satisfies all requirements. A spine-tingling 250Hz refresh rate. Plenty of penetration and range to outperform even the most serious video link. Full telemetry capability is standard, without any range of degradation! Thanks to Crossfire pedigree, drone pilots, traditional R/C pilots and everyone in between can instantly tap into the familiar lineup of compatible software, devices, remotes, and mounting boards.
EASE OF USE
OTA firmware updates, auto-bind, multi-bind, LUA device configuration such as flight controller PIDs, etc. and cloud connectivity: No problem! These are all features that TBS first brought into the R/C space with TBS Crossfire! All receivers arrive in binding mode and it remembers your bind across all of your radios, so the bind button is technically not needed ever.
UNDER THE HOOD
TBS Tracer runs on the Crossfire engine. Over 6 years of active development and by far the most popular R/C system for FPV enthusiasts! You instantly tap into the same reliability, features, and compatibility that drone pilots see as synonymous with peace of mind. So what's the difference? Higher update rate, lower latency, smaller antennas due to a higher frequency. Crossfire users will feel right at home!
THE TBS GUARANTEE
In over 10 years of TBS existence, software updates have always been free, continuous, and plenty. Hardware is built for longevity and comes packed with a great range of features that are yet to be unlocked. Support has always been laser-focused on customer satisfaction. For pilots, by pilots.
It is the reason why TBS products have the largest following, and why investment into TBS Tracer will continue to pay dividends in the future - just like TBS Crossfire continues to do for all hobbyists. As a thank, you from us for your support, visit our website and enter the serial number of your Crossfire as Coupon Code for 30% OFF on all TBS Tracer TX & RX products!
FEATURES
Long-range, adaptive and robust remote control system for your drone & aircraft
Low latency, 250Hz update rate (5x faster than typical - world's fastest) for mind-blowing accuracy
The two-way communication link with real-time link vitals and telemetry
OTA firmware updates, auto-bind, multi-bind support
TBS Cloud connectivity with telemetry output for smartphone apps
Fully configurable by OpenTX and TBS TANGO remote using CRSF protocol
"Unlimited" amount of people can fly at the same time
Selectable RF power from 25mW to 1W (local restrictions apply)
8 or 12ch output via CRSF, SBUS, inverted SBUS, or PPM
Serial Modem capable of transmitting MAVLink or other serial protocols (up & downlink)
TBS TRACER NANO TX
Latency & Refresh Rate: 3ms, 250Hz
Output power: 25mW / 100mW
Frequency Bands: 2.4GHz ISM
Input Voltage: 3.5 - 13V
Connector: USB-C
Power consumption: 1.1W (@10mW) - 2W (@100mW)
Dimensions: 65 x 48 x 22 mm (JR module size)
Radio Compatibility: LITE module bay (e.g. TBS Tango 2, Taranis X-Lite, X9 Lite), OpenTX V2.1+. The TBS Tracer Nano TX is suggested for use in Futaba and Spektrum remotes that do not have a JR-module bay.
* output power modes may not be available due to local regulation limitations
TBS TRACER NANO RX
Antnna ports: 2x u.FL / IPEX (diversity)
Package contents: 1x TBS Tracer Nano RX, 2x Immortal-T, silicone cables
Protocols: 2x CRSF, SBUS, PPM, 6x PWM, SmartAudio 2.0 / 2.1 (VTx Control)
Weight: 0.5g (receiver only)
Size: 11mm x 18mm

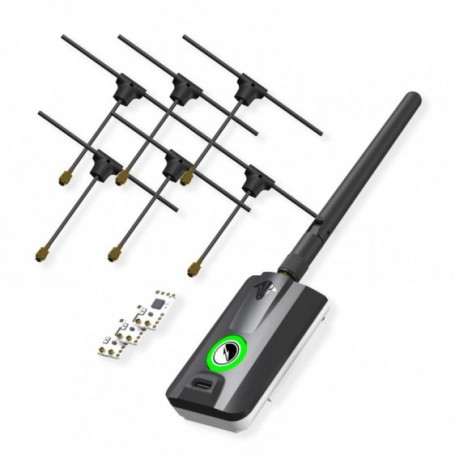

INCLUDES
1 x TBS Tracer Nano TX
3 x TBS Tracer Nano RX
6 x TBS Tracer Immortal T Antenna
