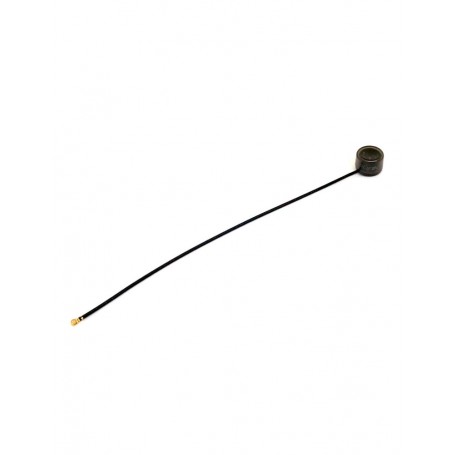

TRUERC CORE 5.8GHz Antenna U.FL Side Feed LHCP - 205mm

TRUERC CORE 5.8GHz Antenna U.FL Side Feed LHCP - 205mm

The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike. This  omnidirectional antenna start with a refined RF design that provide excellent consistency within units and various cables configurations. TrueRC then added a very durable outer shell that protect the antenna from the inevitable crashes.

This one is a special version with side exit cable, great to bury inside an airplane’s wing or fuselage.

Features:

Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing

Clear indication of polarization direction

Smooth radiation pattern with even gain in all directions

Excellent axial ratio and efficiency

Exclusive knurled True-SMA for easy tightening

Side exit cable for novel mounting options

Specifications:

Gain: 1.9dbic

Cross-Polar Rejection: -10 to -20dB (3.2%)

Bandwidth: 5.5GHz-6.1GHz

Radiation Efficiency: 98%

SWR: <=1.2:1

Weight: 1.6g

Cable Length: 205mm

Connector: U.FL

Polarization: Left Hand Circular (LHCP)

Package Contents:

1 x TrueRC CORE 5.8GHz Antenna U.FL Side Feed LHCP
