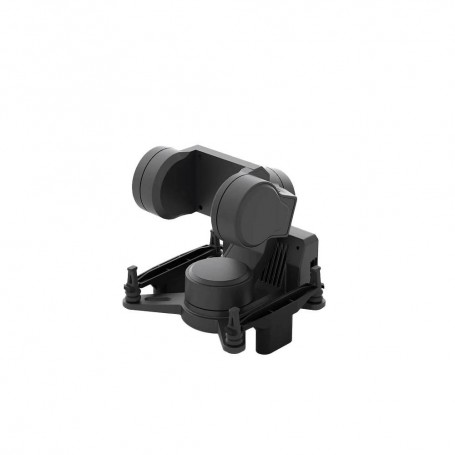

Caddx GM3 FPV Gimbal

Caddx GM3 FPV Gimbal

Based on pilots feedback and implement head tracking function of goggles, our R & D department team has designed gimbals specifically for FPV cameras. This series includes three models: single-axis, dual-axis, and tri-axis, catering to various user needs.

The design of the gimbal is primarily aimed at enhancing the pilot's experience, providing them with stable, smooth images, allowing them to easily capture stunning aerial videos and photos. With the addition of the head tracking function, it creates an immersive feeling.

Note: This purchase includes only the GM3 FPV Gimbal; the VTX and the camera must be bought separately.

Features:

Compatible with Walksnail Avatar Goggles

Enhanced FPV Experience

Mechanical Stabilization

Supports Head Tracking

Modes and Sensitivity

Controllable Gimbal

Quick Assembly

Flexibility

Specifications GM3:

Camera Compatibility: 19mm FPV Camera

Max Controllable Speed: ±1500°/s

Max Controlled Rotational Range:

Pitch: ±120°

Yaw: ±160°

Roll: ±60°

Head Tracking Control: Support

Static Power Dissipation: 1.5W

Control Mode: PWM / UART

Image Stabilization: ±0.005°

Size: 50x46.5x53mm

Voltage: 7~26V

Model: GM3

Weight: 46g

Includes:

1x Caddx GM3 FPV Gimbal

1x Power Cable
