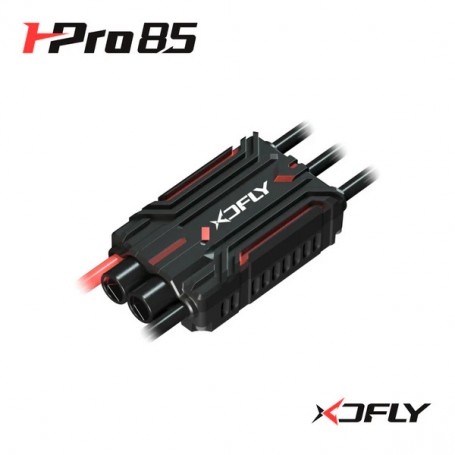

XDFly HPRO 85A ESC 3-6S SBEC Helicopter 380-420 Class
XDFly HPRO 85A ESC 3-6S SBEC Helicopter 380-420 Class
We(XDFly) have released HPRO 85A ESC 3-6S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 380-420 Helicopter.
Key Features:
1. Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
2. Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
3. Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
5. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
6. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
7. The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
8. With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
9. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.
Specification:
Model: HPRO 85A 3-6S SBEC
Continuous Current(A): 85A
Burst Current(A): 160A
Input Voltage: 3-6S Lipo
BEC Output: 6-12V Adjustable; Current Cont.10A, Peak 35A
Size: 70x36x21mm
Weight: 93g
Power Wire: 12 Gauge 130mm Red/Black
Motor Wire: 12 Gauge 92mm Black
Programming Way: XDFly Android&iOS APP/VBCT/E/RF2/Jeti
Telemetry: VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
Applications: 380-420 Class electric helicopters or fixed-wing aircrafts
Includes:
1x XDFly HPRO 85A ESC 3-6S SBEC Helicopter 380-420 Class
