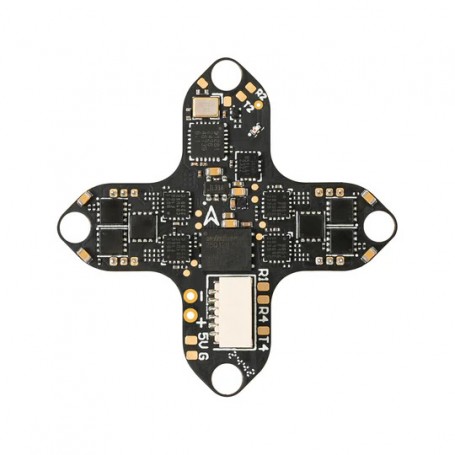

The Matrix 1S 3IN1 HD Brushless Flight Controller is purpose-built for 1S HD whoops, featuring the iconic "cross" design. Engineered exclusively for digital FPV, it eliminates analog OSD, integrating a flight controller, ESC, and ELRS 2.4G RX into one lightweight, streamlined unit for effortless setup and maintenance.
Equipped with newly developed BEC and ESC, it’s finely tuned to meet the demands of 1S HD whoops, delivering superior digital image transmission and setting a new standard in 1S HD flight controllers.
Features:
Optimized for 1S Whoops: Designed to enhance performance with the DJI O4 digital transmission system.
Three-in-One Integration: Combines flight controller, ESC, and ELRS 2.4G RX into a compact unit, focusing exclusively on high-quality digital FPV by eliminating analog OSD.
Stable HD Video Transmission: Features a newly developed BEC to ensure consistent power delivery for seamless HD performance.
Enhanced Overcurrent Capacity: Supports 12A continuous current and 18A peak ESC, providing robust performance for demanding flights.
Reliable Precision: Includes an independent 3.3V LDO design to deliver stable, interference-free power directly to the IMU for accurate control.
Effortless Setup: Equipped with convenient motor plugs and a SH1.0-6Pin HD digital port for a solder-free, hassle-free installation and maintenance experience.
FC:
MCU: STM32G473CEU6 (168MHz)
Gyro: ICM42688P
Blackbox memory: 16MB
Sensor: Voltage & Current
BEC: 5V/3A
UART: UART 1 (RX Only/SBUS), UART 2 (Free), UART 3 (For RX), UART 4 (Free/HD MSP)
ESC: 12A continuous
RX: Serial ELRS 2.4GHz (V3.4.3)
FC firmware: Betaflight_4.5.1_BETAFPVG473
USB port: SH1.0-4Pin
HD Digital VTX Port: SH1.0-6Pin
Motor plug: JST1.25-3Pin
Battery connector: BT2.0
Mounting size: 25.5mm x 25.5mm
Weight: 3.2±0.1g (battery connector excluded), 4.2±0.1g (battery connector included)
ESC:
Power input: 1S Only
Current: 12A continuous, 18A peak
ESC firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware
Digital signal protocol: DSHOT300, DSHOT600
Includes:
1 * Matrix 1S Brushless Flight Controller (3IN1 HD)
1 * Type-C to SH1.0 Adapter
1 * SH1.0-4Pin Adapter Cable
1 * SH1.0-6Pin Adapter Cable
4 * M1.2*4 Self-tapping Screws
4 * M1.4*5 Self-tapping Screws
4 * Shock Absorbing Balls
Attention
Flight controllers are covered for manufacturer defects. Issues arising from user errors, physical crash damage, damage during installation or dismantling, modifications, power surges, electrical fires, or water exposure are not covered.
