Matrix 1S Brushless Flight Controller (4IN1)
Matrix 1S Brushless Flight Controller (4IN1)

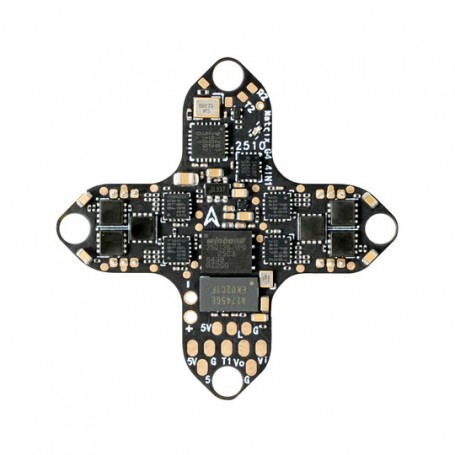

The Matrix 1S Brushless Flight Controller redefines 1S whoop performance with two purpose-driven architectures: the 4IN1 for analog mastery (adding built-in OSD + solder pads for external VTXs).
Both feature the iconic cross-design architecture, newly developed BEC, 18A peak ESCs, and the STM32G473 MCU for 55% faster processing—delivering effortless setup, pro-tier control, and uncompromised flight dynamics that rewrite 1S standards.
Features:
Dual DNA: 3IN1 (FC, ESC, and ELRS 2.4G RX) for DJI O4 digital dominance (omits analog OSD), 4IN1 for analog mastery with OSD.
STM32G473 MCU: 55% faster processing than F411 for responsive tuning.
Stable Video Transmission: Features a newly developed BEC to ensure consistent power delivery for seamless HD performance.
Enhanced Overcurrent Capacity: Supports 12A continuous current and 18A peak ESC, providing robust performance for demanding flights.
Reliable Precision: Includes an independent 3.3V LDO design to deliver stable, interference-free power directly to the IMU for accurate control.
Whoop-ready Installation: The 3IN1 is equipped with motor plugs and a SH1.0-6Pin HD digital port for a hassle-free installation and maintenance experience, while the 4IN1 has external VTX soldering pads for protocol flexibility.
FC:
MCU: STM32G473CEU6 (168MHz)
Gyro: ICM42688P
Blackbox Memory: 16MB
Sensor: Voltage & current
BEC: 5V/3A
UART (3IN1 Version): UART 1 (RX Only/SBUS), UART 2 (Free), UART 3 (For RX), UART 4 (Free/HD MSP)
UART (4IN1 Version): UART 1 (For VTX), UART 2 (Free), UART 3 (For RX), UART 4 (NONE)
ESC: 12A continuous
RX: Serial ELRS 2.4GHz (V3.4.3)
FC Firmware: Betaflight_4.5.1_BETAFPVG473 (3IN1 version), Betaflight_4.5.2_BETAFPVG473_V2 (4IN1 version)
USB Port: SH1.0-4Pin
OSD: AT7456E (4IN1 version only)
HD Digital VTX Port: SH1.0-6Pin (3IN1 version only)
Motor Plug: JST1.25-3Pin
Battery Connector: BT2.0
Mounting Size: 25.5mm x 25.5mm
Weight (3IN1 Version): 3.8±0.1g (battery connector excluded), 4.2±0.1g (battery connector included)
Weight (4IN1 Version): 3.6±0.1g (battery connector excluded), 4.6±0.1g (battery connector included)
ESC:
Power Input: 1S only
Current: 12A continuous, 18A peak
ESC Firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware
Digital Signal Protocol: DSHOT300, DSHOT600
Includes:
1 * Matrix 1S Brushless Flight Controller (3IN1 HD)
1 * Type-C to SH1.0 Adapter
1 * SH1.0-4Pin Adapter Cable
1 * SH1.0-6Pin Adapter Cable
4 * M1.2*4 Self-tapping Screws
4 * M1.4*5 Self-tapping Screws
4 * Shock Absorbing Balls
Attention
Flight controllers are covered for manufacturer defects. Issues arising from user errors, physical crash damage, damage during installation or dismantling, modifications, power surges, electrical fires, or water exposure are not covered.
