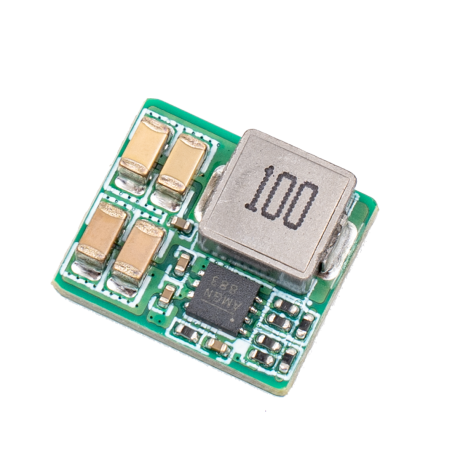

BLITZ BEC Module

BLITZ BEC Module

The BLITZ ESC features step-down switch mode, high-efficiency synchronous rectification, and the ability to step down from an input voltage of up to 35V to a low output stable voltage, which makes it ideal for step-down voltage applications.

It offers a very compact solution to achieve 2A/3A output current over a wide input supply voltage (6 to 35V).

Features:

Step-down switch mode

High-efficiency synchronous

Wide 6V to 35V Input voltage range

The voltage output can be 5V or 12V adjustable. (default 5V)

Specifications:

Input voltage: 6-35V

Output voltage / current: 5V or 12V. Average 2A / Peak 3A

Conversion efficiency: the average efficiency of output 12V is above 92%, and the average efficiency of output 5V is above 88%.

Size: 12*14*4.5mm

Pins distance: 2.55mm

Weight: 1.8g

Includes:

1 x BLITZ PSM BXN 5D2UD6 BEC

1 x Connecting cables
