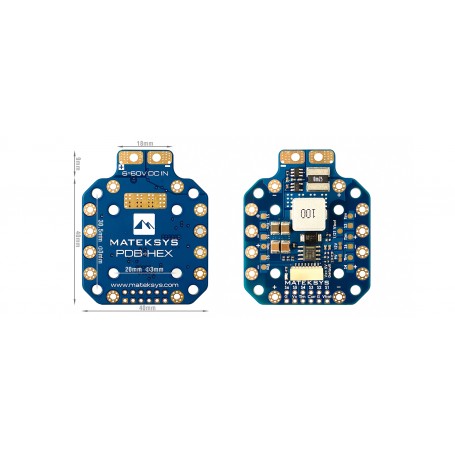

MATEK PDB HEX 7-60V DC - BEC 5A, 5V10V12V

MATEK PDB HEX 7-60V DC - BEC 5A, 5V 10V 12V

PDB Matek HEX avec BEC 5V -12V

Fourni avec condensateur et fiche multibroche

Encaisse jusqu'à 264 ampères !

PDB

Input voltage range: 6~60V (2~12S LiPo)

PDB/current sense resistor: 140A cont, 264A burst.

ESC power pads: 60A cont. 100A burst

6x ESC power /signal/ telemetry pads

Current Senor: 264A,  3.3V ADC

Current Scale 125(INAV/BF),  BATT_AMP_PERVLT  80 (ArduPilot)

JST-SH-8P Connector and Pads

Vbat: Battery voltage

G: ground

Curr: current signal

Tlm: Duplicates Tlm pads for ESC telemetry

S1/S2/S3/S4/S5/S6: ESC signal

Vx: Regulator output

BEC Vx output (5V default)

Vx= 5V by default,   Continuous 5 Amps

Bridge 9V jumper,  Vx= 9V,  Continuous 4 Amps,  Max.5A

Bridge 12V jumper,  Vx= 12V, Continuous 4 Amps,  Max.5A

Output Short-circuit tolerant (1 seconds)

Overcurrent protection & self-recovery

Voltage divider

1K:20K resistors

Output 1/21 Vbat voltage

Physical

Mounting: 30.5 x 30.5mm, 20 x 20mm, Φ3mm

Dimensions: 49 x 40 x 6 mm

Weight: 12g

Including

1x PDB-HEX

1x Rubycon ZLJ 63V 390uF

1x JST-SH1.0_8pin cable, 5cm

2x JST-SH1.0_8pin connectors
