RP1 ExpressLRS 2.4ghz Nano Receiver V2

RP1 ExpressLRS 2.4ghz Nano Receiver V2

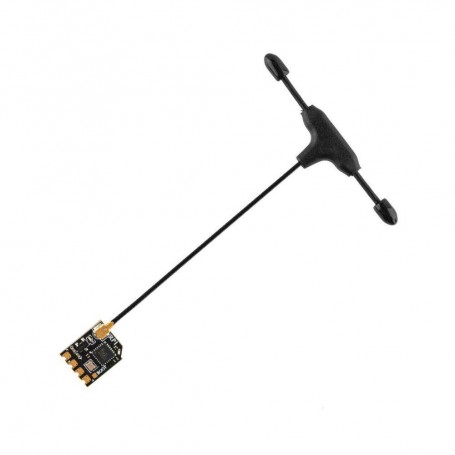

The RadioMaster RP1 ExpressLRS 2.4GHz Nano Receiver w/ 65mm UFL T-Antenna is an open-source receiver based on ExpressLRS.

It features an ESP8285 MCU and an SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use and WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.

Due to the low-latency and high-refresh-rate RF module, the RP1 is ideal for FPV racing or Long Range flights. Suitable for Whoops, drones, and fixed-wing models due to the ultra-light and nano size, these receivers can fit just about anywhere!

Features:

Built-in WIFI so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone

Upgraded rigid antenna with greater durability and performance

Improved PCB design is better for heat dissipation

Solder pads are improved and easier to solder to

UFL antenna socket for full-range antenna use

Low-latency and high-refresh-rate RF module

Open-source receiver based on ExpressLRS

LED on the top side of PCB

SX1280 RF chip

ESP8285 MCU

Specifications:

Maximum receive refresh rate: 500Hz / F1000Hz

Firmware Version: ExpressLRS v2.4 pre-installed

Item: RP1 Nano ExpressLRS 2.4GHz Receiver

FW Target: RadioMaster RP1/2 2400 RX

Minimum receiver refresh rate: 25Hz

Antenna: 65mm 2.4GHz T Antenna

Weight: 2.2g (Including antenna)

Dimension: 13mm*11mm*3mm

Working voltage: 5v

Bus interface: CRSF

Type: ISM

Includes:

1x RP1 ExpressLRS 2.4GHz Nano Receiver V2 EU-LBT

1x 65mm UFL 2.4GHz T Antenna

1x User Manual
