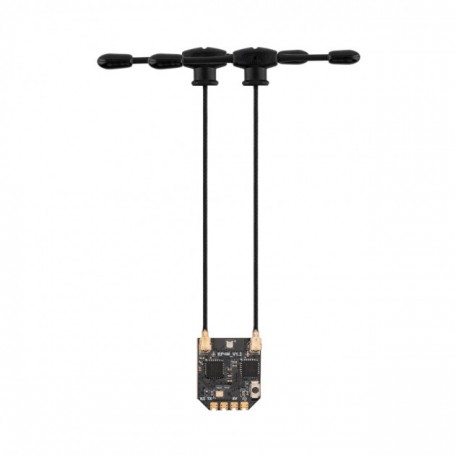

RP4TD-M ELRS 2.4GHz Mini True Diversity Receiver EU-LBT

RP4TD-M ELRS 2.4GHz Mini True Diversity Receiver EU-LBT

Introducing the Compact and Lightweight RP4TD-M! Building on the success of the RP4TD, we're excited to unveil the RP4TD-M—a compact and lightweight version designed for optimal performance.

Weighing in at just 1 gram, this receiver is ideal for builds where minimizing weight is crucial, while still leveraging 'Gemini' technology for superior interference mitigation.

Thanks to its optimized circuit design, the RP4TD-M features dual-channel 2.4GHz radios, delivering exceptional signal sensitivity, signal-to-noise ratio, and overall performance. Whether you're into racing drones or any application where every gram counts, the RP4TD-M stands out as a leader in its class.

Features:

Mini size true diversity Gemini receiver

Class leading SNR and RSSI performance

Built-in TCXO (temperature compensated crystal oscillator)

Optimized PCB design for better heat dissipation

Upgraded antenna with greater durability and performance

2 x 10mW RF Telemetry power output

Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification:

Item: RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver

Type: ISM

MCU: ESP32

RF Chip: SX1281 x 2

Antenna: 65mm 2.4GHz T Antenna x 2

Frequency Range: 2.4GHz

Maximum Refresh Rate: 500Hz / F1000Hz

Telemetry RF Power: Max 2x 10mW

Working Voltage: DC 5.0V

Wifi Updates: Yes

Weight:  1.00g [Without antennas] / 3.30g [With antennas]

Dimension: 18.10 x 16.0mm

Firmware Version: ExpressLRS V3.4.3 pre-installed

FW Target: RadioMaster RP4TD-M 2400 RX

Bus interface: CRSF

Package Includes:

1 * RP4TD-M ExpressLRS True 2.4GHz Diversity Receiver

1 * CRSF wire

3 * Heat-Shrinkable Tube

2 * 65mm 2.4GHz T Antenna (Installed on receiver)

1 * User Manual
