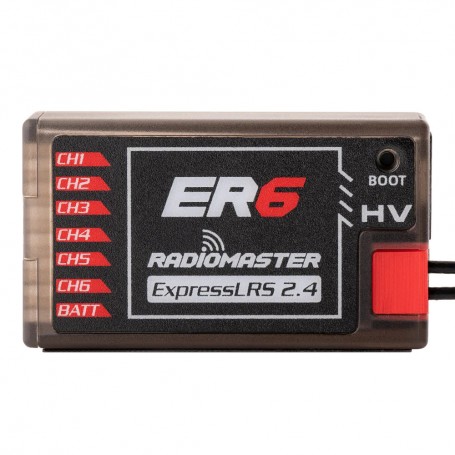

Radiomaster ER6 2.4GHz ELRS PWM Receiver

Radiomaster ER6 2.4GHz ELRS PWM Receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system.

It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The ER6 ELRS receiver has been specially designed for fixed-wing users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use.

A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors.

The ER6 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

Features:

Based on the Revolutionary ExpressLRS System

High performance, high reliability, flexible configuration, fast response speed and ultra-long range

Support 6 PWM Channels

Optimized ground up PCB design

Automatically voltage telemetry of external battery voltage or built-in receiver voltage

Supports Wi-Fi updates and WEBUI configuration

High quality 2.54 mm connector

Standard 20 cm High Sensitivity Antenna

Reserve 4pin CRSF input port

The shell adopts one-piece molding process with high structural strength

For fixed-wing aircraft and more

Specification:

Item: ER6 2.4GHz ELRS PWM Receiver

Power supply: DC 4.5 - 8.4V

Antenna type: 20cm high sensitivity dual antenna

Wireless protocol: ExpressLRS 3.3.0 pre-installed

Output channel: 6CH PWM

Telemetry power: maximum 100mw (LUA Adjustable)

Telemetry Battery voltage detection range: DC 4.0 - 35V

Bus interface: CRSF

Weight: 14.5 grams

Dimensions: 43*25*15mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6 2400 PWM RX

Package Includes:

1 * ER6 2.4GHz ELRS PWM Receiver EU-LBT

1 * Voltage telemetry wire (Type-B)

1 * CRSF wire

1 * ELRS- RX- SBUS wire

1 * User Card
