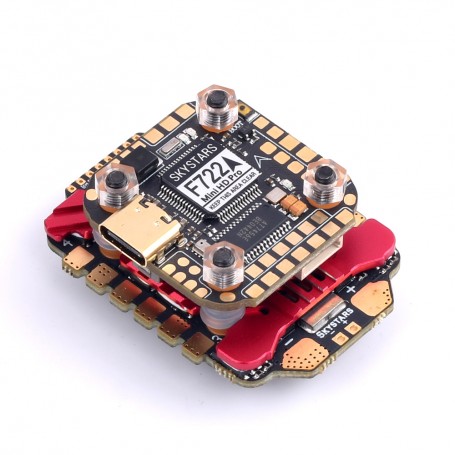

Skystars F7 Mini HDPro FC 55A AM32 32Bit 3-6S 20×20 4in1 ESC FlyStack

84,06 CHF TTC 98,90 CHF -15% 77,77 CHF (HT)
TTC
check En Stock

Skystars F7 Mini HDPro FC 55A AM32 32Bit 3-6S 20×20 4in1 ESC FlyStack



TVS protect.

Automatic voltage monitoring.

Better control performance

Flashed with the AM32 firmware in factory, support telemetry functions (including voltage ,RPMS & current )



SKYSTARS F722 Mini HDpro 20X20 Flight Controller:



 MCU:  STM32F722RGT6 216MHz

 IMU: BMI270 (SPI)

 OSD: Betaflight OSD &  DJI HD OSD (UART6)

 6 hardware UARTS (UART1,2,3,4,5,6)

 5V 2A & 10V 2A

 Input Voltage: 3-6S Lipo

 Blackbox: 16MB

 Barometer: YES

 Firmware:  SKYSTARSF7HDPRO

 Dimensions: 35x28x7mm

 Mounting Holes: Standard 20mm/M3 square to center of holes

 Weight: 4.2g



Features:



 Designed the LED installation position in the four corners,support WS2812 Programable LED.

 Supports serial receivers (SBUS, iBus, Spektrum, Crossfire,) . Support 3.3V Satellite Receiver.

 High-performance / low-noise / high sensitivity IMU. BMI with 6-axis gyro and accelerometer.

 Support connect DJI HD air module.

 Input voltage 12V-26V (3-6S)

 TVS protect.

 Automatic voltage monitoring.



Skystars Kramam 55A AM32 32Bit 3-6S 20×20 4in1 ESC:



 voltage: 3-6S LiPo

 Con.Current: 55A Peak

 Current: 70A≥ 10S

 Firmware: AM_32

 Support : Dshot 600

 Mounting hole : 20X20 mm/M3

 BEC: No

 Product size: 35*47*6.5mm

 Weight: 16.5g



Includes:



1x Skystars Kramam 55A AM32 32Bit 3-6S 20x20 4in1 ESC

1x Skystars F722 Mini HD Pro Flight Controller 20×20mm



Wiring diagram:
