Skystars F4 F405 HD2 and 50A KO50 Blheli-S ESC 30x30mm

Skystars F4 F405 HD2 and 50A KO50 Blheli-S ESC 30x30mm

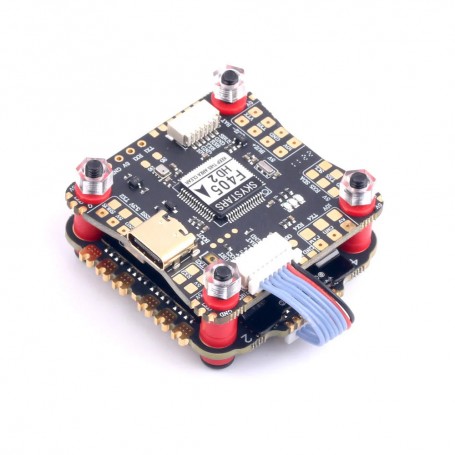

Skystars F4 F405 Flight controller and 50A Blheli-S ESC Fly Tower Stack

SKYSTARS F405 HD2 Flight controller:

MCU: STM32F405

IMU: BMI270

OSD: AT7456E

Blackbox: 16MB

6X Uarts(1 2 3 4 5 6)

WS2812 led Strip: YES

Baro: YES

Beeper: YES

BEC: 5V/2A ,3A Peak

Physical Mounting: 30.5*30.5mm, 4mm with Grommets 3mm

Dimensions: 36*36mm

Weight: 6g

FC Firmware:

Betaflight FC Target: SKYSTARSF405

INAV FC Target:SKYSTARSF405HD

KO45A 4IN1 3-6S ESC AM32 128K DSHOT1200 4-IN-1 ESC:

Dimension: 41*46mm

Mounting Holes: 30.5*30.5mm/¦µ3mm

Weight:13.3g

Supports 3-6S Lipo input

BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware, Support Bulejay.

Current sensor: YES

BEC: NO

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Target: Q-H-50 BLS 16.7

Includes:

1 x Skystars F4 F405 Flight controller

1x 50A KO50 Blheli-S ESC Fly Tower Stack - 30.5x30.5mm

8x Silicon grommets M4 to M3

Wiring diagram:
