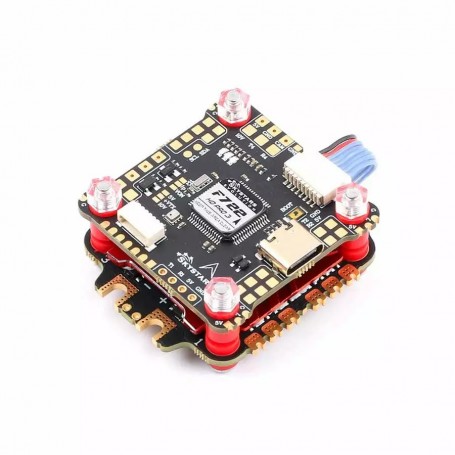

SKYSTARS F7HD Pro3 Flight controller and KO60A AM-32 32bit 128K 4IN1 ESC fly tower stack

SKYSTARS F722HD PRO3 Flight controller:

MCU: STM32F722RGT6 216MHz

Gyroscope: BMI270

Baro:Bmp280

OSD: Betaflight SPI OSD DJI HD OSD(UART6)

Black box: 16MB

6x Uarts: UART 1/2/3/4/5/6

4x PWM outputs

1x I2C

3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)

USB Type-C(USB2.0)

1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)

1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)

VTX 10V/Vbat filtered power ON/OFF switch

DJI FPV OSD is supported by any spare UART

LED: 4 LED independent pads, support WS2812 programming lamp output.

Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.

Power:

Input voltage: 3-6S

BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI

LDO 3.3V: Max.250mA

FC Firmware:

BetaFlight firmware: SKYSTARSF722Pro

INAV firmware:SKYSTARSF722HD

Mounting:

Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation

External size 39mm × 39mm

Flight control weight: 6.9g

Flight control onboard voltage sensor.

KO60A II 4IN1 3-6S ESC AM32 128K DSHOT1200 4-IN-1 ESC:

Support 128K, Dshot1200,600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal

Power supply voltage: 3-6S (12-26V)

Continuous working current: 60A

No built-in 5V BEC output

Firmware: AM-32

Screw hole spacing: 30.5*30.5MM

Aperture: 4MM

Weight:14.6g

Includes:

1x F722HD PRO3 Flight Controller

1x KO60A II 4IN1 3-6S ESC AM32

8x Silicon grommets M4 to M3

2x JST-SH1.0_8pin cable, 4cm

1x JST-GH-6P cable for DJI port, 10cm

Wiring diagram:
