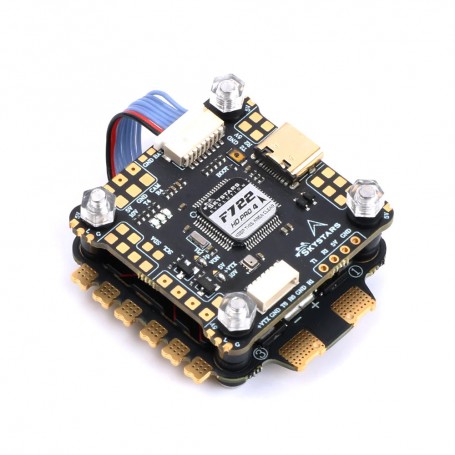

Skystars F7HD STACK F722HD PRO4 KM65A BLHELI32 F4 128KHZ 65A 4IN1 ESC - 30 X 30mm
Skystars F7+KM65 is a powerful stack for 5" freestyle and racing drones or 7-8" long-range drones. The flight controller with modern F7processor has 16MB memory for blackbox and 5V/3A and 10V/3A BEC.
The flight controller can be conveniently used on a drone with both digital and analog video transmission. The pads for connecting the LEDs are in the corners. The integrated barometer for altitude measurement also comes in handy.
The KM65 ESC supports 3-6S battery power and current up to 65A, which makes it playfully handle motors of size 2207-2808.
The ESC has an aluminum heat sink on top to help dissipate heat better while protecting sensitive components from mechanical damage.
The ESC uses a powerful F4 32-bit processor and BlHeli_32 firmware.
Thus it supports telemetry, bidirectional DShot and PWM frequency up to 128KHz. The ESC is protected against voltage spikes by a TVS diode.
Features:
1. Solder pads are the largest in size compared to other FC in market.
2. Proper solder pad spacing to avoid solder bridge and facilitate easy soldering.
3. ESC connector on top-side rather than bottom which makes it easy for repair.
4. TVS Diode for Reverse Polarity Protection and Voltage Spike Suppression.
5. Powerful 3A BEC to supply all your electronics.
6. Pads arrangement are executed in such a way that when you twist the wires of the camera VTX and RX you don't get any wire overlapping this gives you a uniform twist and clean look.
7. Support DJI O3 connector on the top side.
8. Support VTX ON/OFF Pit Switch.
9. Gyroscope independent power supply, No power lines near MPU6000 Gyro to avoid any EMI interference.
10. Two stages of Quality check to reduce any faulty electronic.
11. Comes ready with I2C support and INAV.
SKYSTARS F722HD PRO4 Flight controller:
MCU: STM32F722RET6 216MHz
Gyroscope: MPU6000
Baro:Bmp280
OSD: Betaflight SPI OSD DJI HD OSD(UART6)
Black box: 16MB
6x Uarts: UART 1/2/3/4/5/6
4x PWM outputs
1x I2C
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
USB Type-C(USB2.0)
1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
1x JST-SH1.0_6pin connector (10V/Gnd/TX6/RX6/Gnd/Sbus)
VTX 10V/Vbat filtered power ON/OFF Pit switch
DJI FPV OSD is supported by any spare UART
LED: 4 LED independent pads, support WS2812 programming lamp output.
Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.
Power:
Input voltage: 3-6S
BEC: 5V/10V 3A dual-channel BEC supports stable power supply on the sky side of DJI O3
LDO 3.3V: Max.250mA
Flight control onboard voltage sensor.
FC Firmware:
BetaFlight firmware: SKYSTARSF722Pro
INAV firmware:SKYSTARSF722HD
Mounting:
Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
External size 39mm × 39mm
Flight control weight: 6.9g
BL32-65A 4IN1 3-6S ESC BLHELI32 128K DSHOT1200 4-IN-1 ESC:
Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
Excellent over-current capability.
Extreme stably support 6S LiPo battery with TVS.
Excellent heat dissipation performance
Better control performance F4 core MCU support 128K.
Input voltage: 3-6S LiPo
Con.Current: 65A
Peak Current: 90A≥ 10S
Firmware: BLHeli_32
Support : Dshot 600/1200
Mounting hole : 30.5mm/M3
BEC: No
Product size: 45.6*45*7.6mm
Weight: 19g
Includes:
1x F7HD Pro4 FC
1x KM65 128K BL32 4IN1 ESC
8x Silicon grommets M4 to M3
2x JST-SH1.0_8pin cable, 4cm
1x JST-GH-6P cable for DJI port, 10cm
Wiring diagram:
