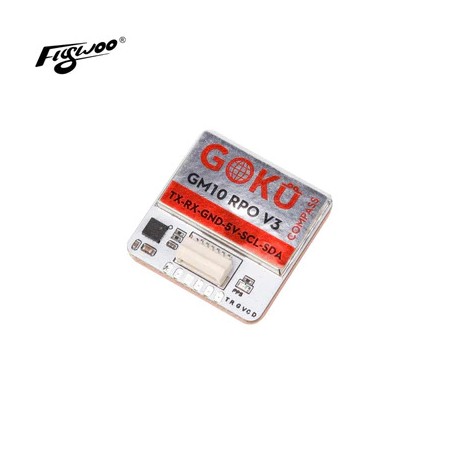

Flywoo GOKU GM10 Pro V3 GPS w/compass
zoom_out_map
chevron_left chevron_right
Nouveau

Flywoo GOKU GM10 Pro V3 GPS w/compass

22,90 CHF TTC 21,26 CHF (HT)
TTC
block Rupture de stock

Flywoo GOKU GM10 Pro V3 GPS w/compass



GOKU GM10 V3 GPS series is here!  Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.



Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol.

BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols













Description:



Brand: FLYWOO

Model: GM10 PRO V3 GPS w/ Compass

Dimension : 25mm*25mm*6mm

Weight : 7.3g

Connector : 1.00mm spacing between the 6pins patch seat



Features:



GPS Module,Three Module Compass

With electronic compass IC QMC5883L

1.0mm spacing between the 6pins patch seat



Specification:



Electrical Characteristics

Chipset : M10050(Tenth Generation Chip)

Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

Default Protocol : GPS,Galileo,BeiDou

Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

Channels : 72 Searching Channel



Sensitivity:



Tracking : -162dBm

Reacquisition : -160dBm



Data and Update Rate:



Support Rate : 4800bps to 921600bps,Default 115200bps

Data Level : TTL or RS-232,Default TTL level

Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)

Output frequency : 1Hz-10Hz,Default 10Hz



Operational Limits:



Altitude : 50,000m Max

Velocity : 500m/s Max

Acceleration : Less than 4g



Power consumption:



VCC : DC Voltage :5V

Operating temp : -40 °C ~ +85°C

Storage Temp : -40°C ~ +105°C



Indicator :



PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed

The Module’s Pins: TX RX GND 5V SCL SDA



Includes:



1x GM10 PRO V3 GPS w/ Compass

1x 150mm Cable

1x Copper Foil
