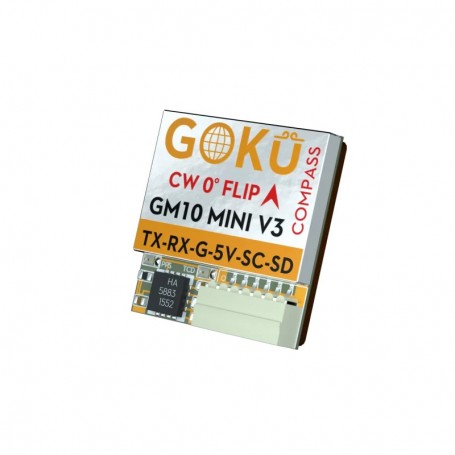

Flywoo GOKU GM10 Mini V3 GPS w/compass

Flywoo GOKU GM10 Mini V3 GPS w/compass

The GOKU GM10 Mini V3 GPS w/compass has the same size as the GOKU GM10 Mini V3 GPS, but with the addition of a compass.

It is lightweight, weighing only 4.1g. The satellite search speed and maximum search for up to 32 satellites are the same as the GOKU GM10 Mini V3 GPS.

If you need a compass function, then the GOKU GM10 Mini V3 GPS w/compass would be a better choice.

Description:

Brand: FLYWOO

Model: GM10 MINI V3 GPS w/compass

Dimension :18mm*18mm*4.8mm

Weight : 4.1g

Connector : 1.00mm spacing between the 4pins patch seat

Features:

1、GPS Module,Three Module Compass

2、With electronic compass IC QMC5883L

3、1.0mm spacing between the 6pins patch seat

Specification:

Electrical Characteristics

Chipset : M10050(Tenth Generation Chip)

Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

Default Protocol : GPS,Galileo,BeiDou

Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

Channels : 72 Searching Channel

Sensitivity:

Tracking : -162dBm

Reacquisition : -160dBm

Data and Update Rate:

Support Rate : 4800bps to 921600bps,Default 115200bps

Data Level : TTL or RS-232,Default TTL level

Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)

Output frequency : 1Hz-10Hz，Default 10Hz

Operational Limits:

Altitude : 50,000m Max

Velocity : 500m/s Max

Acceleration : Less than 4g

Power consumption:

VCC : DC Voltage ：5V

Operating temp :　-40 °C ~ +85°C

Storage Temp : -40°C ~ +105°C

Indicator :

PPS LED: Yellow. The PPS LED remains unlit when the GPS signal has not been fixed, but starts flashing once the GPS signal has been successfully fixed.

The Module’s Pins: TX RX GND 5V SCL SDA

Includes:

1x GM10 Mini V3 GPS w/ Compass

1x 150mm Cable

1x Copper Foil
