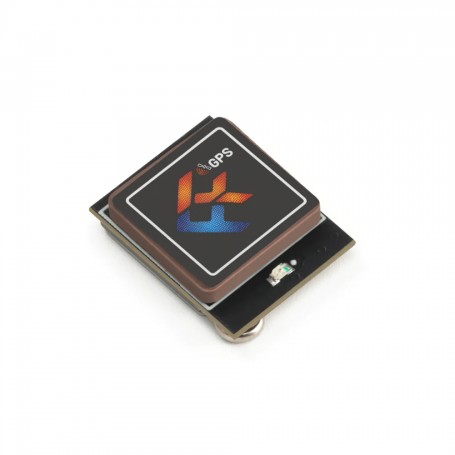

FlyFishRC M10 Mini GPS Module

FlyFishRC M10 Mini GPS Module

FlyfishRC-M10 Mini is a GPS that is small in size, fast in speed, and easy to use. It features an 12*12mm RHCP ceramic patch antenna that provides excellent reception and highly stable connectivity.

The UBLOX 10th generation chip allows for skipping minor changes in altitude, improving stability.

Specifications:

GPS Module Protocol: Ublox/NMEA

Speed Accuracy: 0.05m/s

Cold Start: 30 s

Hot Start: 1-3 s

Tracking Sensitivity: -167dBm

Input Voltage: 3.3~5.5V (typical value 5V)

Maximum Altitude: 50000m

Maximum Speed: 500m/s

Maximum Acceleration: ≤4G

Baud Rate: 4800-115200bps (recommended 115200bps)

GPS Module Size: L16.2x W12.3x H4.9mm

GPS Ceramic Size: 12*12mm

Weight: 2.4g (±0.5g)

Pin Definition:

VCC: System main power supply, voltage is 5V, current is about 40mA during operation

GND: Ground

RXD: Data input

TXD: Data output

Includes:

1x FlyFishRC M10 Mini GPS Module

1x Battery strap GPS Mount

4x #30 Silicone Cable

1x GPS Manual
