Pavo Series COB LED Strip

  • 560mm
  • 750mm
9,90 CHF TTC 9,16 CHF (HT)
check En Stock

Pavo Series COB LED Strip

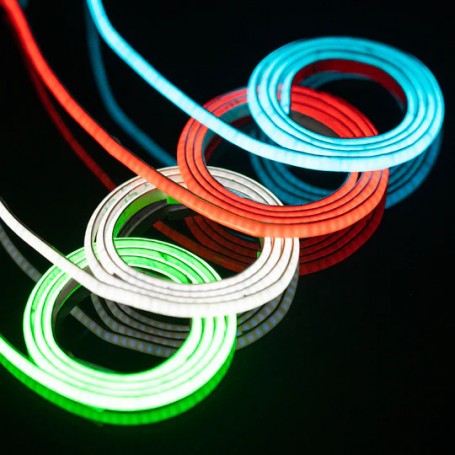

The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 560/750mm*4 mm.

It provides increased visibility and facilitates easy observation of the drone's flight by the pilots during nighttime or poorly lit conditions, which also enhances operational safety, It can be securely mounted on the frame whoop duct, adding unique lighting effects and a visually captivating appearance.

Choose from a single color option of ice blue, white, green, or red, or even mix multiple colors to personalize and elevate your flying experience while ensuring safety.


Pavo Series COB LED Strip



Item: Pavo Series COB LED Strip

Color: Ice Blue, White, Green, Red

Length: 560mm/750mm

Width: 4mm

Supply Voltage: 5V

Current: 450mA~600mA(560mm), 500mA~800mA(750mm)

Control Signal: High and Low Logic Levels

Applicable Drone: Pavo Pico, Pavo20, Pavo25 V2, Meteor85(560mm), Pavo35(750mm)




Connect the flight controller to the Betaflight configuration and switch to the CLI configuration interface.

Enter the RESOURCE in the CLI configuration interface and press ENTER to export the port pin configuration definition of the flight control.



Select the available port on the flight controller as the control port to control the COB LED Strip. The following takes the TX1 port of the UART1 port as an example to configure the PINIO function of the flight controller:

resource SERIAL_TX 1 NONE //Turn off the serial port function of the TX1 pin

resource PINIO 1 A09 //Configure the TX1 pin (i.e. A09 pin) as the No. 2 PINIO function

set pinio_box = 40,255,255,255 //Set PINIO function range

save //Save configuration


Configure the PINIO function mapping relationship between the radio controller and the flight controller.

In Betaflight Configuration, map the PINIO function No. 1 (USER1 in the picture below) to the AUX3 channel of the radio controller (or other channels are acceptable).





Item: Pavo Series COB LED Strip

1 * Pavo Series COB LED Strip

1 * 3-Pin Cable

0.10 kg
