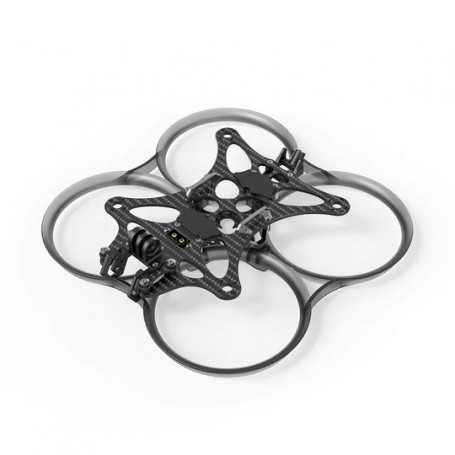

Pavo35 Brushless Whoop Frame
Pavo35 Brushless Whoop Frame
Pavo35 Brushless Whoop Frame is the revolutionary Cinewhoop that the product team has come up with after spending countless hours applying aerodynamics.
The whoop duct can enhance an additional 400g thrust and a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight while also accommodating mainstream HD VTX and Standard Action Cams, guaranteeing it is the smoothest, most powerful, and most responsive flight among all 3.5" cinewhoops.
Features:
With a 9:4:1 Trust-to-weight Ratio, it is a frame that can be compared to the power of a 5" quad. 12 minutes of flight time ensures the pilot flies and captures maximum footage in one go.
The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.
Rocket engine-inspired duct design improves lateral stability and increases thrust by 400g compared to without a propeller guard, giving the Pavo35 stronger power and a better flying feel.
The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.
The COB light strip assembly that can be switched on and off remotely allows pilots to enjoy flying in any scene.
Specification:
Item: Pavo35 Brushless Whoop Frame
Wheelbase: 148mm
Top Plate: 3mm T700 carbon fiber
Base Plate: 1.5mm T700 carbon fiber
Gimbal Carbon Plate: 2mm T700 carbon fiber
Column: 7075 aluminum alloy CNC
Battery Holder: 7075 aluminum alloy CNC
Whoop Duct: PC injection-molded translucent gray
Whoop Duct Diameter: 92mm
Battery Connector: Fixed XT60
Camera Installation Size: 20mm (compatible with 19mm)
HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2
HD VTX Antenna Mounting Hole Size: 4mm
Flight controller Mounting Hole Size: 25.5*25.5mm
Motor Mounting Hole Size: 4*M2 EQS ø12mm
Weight: 113.9g
Includes:
1 * Top Plate
1 * Gimbal Carbon Plate
1 * Base Plate
2 * Battery Tie Holder
4 * Y-shaped Aluminum Alloy Bracket
1 * Whoop Duct
1 * Receiver Holder
1 * Amass XT60EW-M Socket (Black)
2 * Battery Anti-slip Mat
1 * Battery Tie
4 * Flight Controller Amping Ball
4 * Pan/Tilt Vibration Reduction Ball
4 * Pan/Tilt Screws
2 * Inner Hex Flat Head Screw M2.5*5
10 * Inner Hex Flat Head Screw M2*6
4 * Inner Hex Flat Head Screw M2*8
4 * Inner Hex Flat Head Screw M2*10
4 * Nylon nut M2
1 * Accessory package
1 * Service Card
1 * Frame Manual
