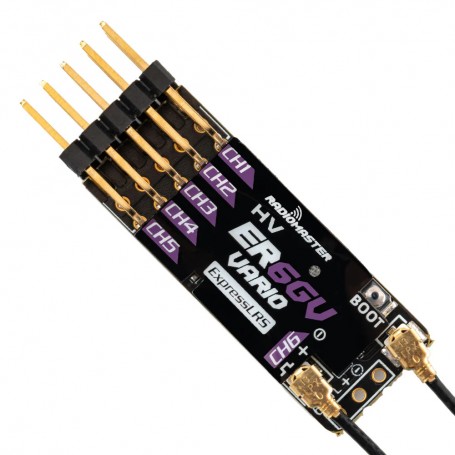

Radiomaster ER6GV 2.4GHz ELRS PWM Receiver

Radiomaster ER6GV 2.4GHz ELRS PWM Receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system.

It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The ER6G & ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver.

It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use.

Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.

Features:

Based on the Revolutionary ExpressLRS System

High performance, high reliability, flexible configuration, fast response speed and ultra-long range

Support 6 PWM Channels

Optimized ground up PCB design

Automatically voltage telemetry of external battery voltage or built-in receiver voltage

ER6GV Receiver is built-in high-precision air pressure sensor (Vario)

Supports Wi-Fi updates and WEBUI configuration

High quality 2.54 mm connector

Standard 15 cm High Sensitivity Antenna

For fixed-wing aircraft and gliders

Specification:

Item: ER6GV 2.4GHz ELRS PWM Receiver

Power supply: DC 3.5 - 8.4V

Antenna type: 15cm high sensitivity antenna

Wireless protocol: ExpressLRS 3.2 pre-installed

Output channel: 6CH PWM

Return power: maximum 50mw (LUA Adjustable)

Built-in high-precision air pressure sensor (Vario)

Battery voltage detection range: DC 3.0 - 26V

Weight: 5.0 grams

Dimensions: 42*13*8mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6GV

Package Includes:

1 * ER6G or ER6GV 2.4GHz ELRS PWM Receiver

1 * Voltage telemetry wire (Type-A)

2 * Heat-shrink tube

1 * User Card
