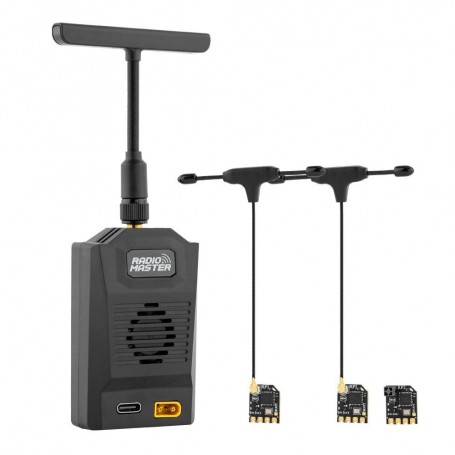

RadioMaster Ranger Nano 2.4Ghz ELRS Module - Starter Combo

RadioMaster Ranger Nano 2.4Ghz ELRS Module - Starter Combo

The RadioMaster Ranger Nano 2.4GHz ELRS Module Starter Combo features a nano module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system.

This starter combo also includes additional RPI receivers and one RP2 Receiver.

Features:

Nano ExpresssLRS 2.4GHz Module

Nano Adapter for Zorro and More

High-Efficiency Cooling System

WiFi and Bluetooth Support

Max F-1000Hz Packet Rate

1W Power Output

Specifications:

Dimension: 136*42*26mm, 48g (with antenna) / 74*42*26mm, 39g (without antenna)

RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)

Receivers: Two RP1 Receivers and one RP2 Receiver

MCU: ESP32(main), ESP8285(aux,as esp backpack)

Frequency Range: 2400 MHz to 2480 MHz

XT30 Power supply voltage: DC 6V - 16V

Maximum packet rate: 500Hz/F1000Hz

Minimum receiver refresh rate: 25Hz

Regulatory Domain: ISM2400

Item: Ranger Nano Module

Weight: 48g (with antenna）

RF chip: SX1281IMLTRT

Bluetooth support: Yes

Wifi Support: Yes

T-ANTENNA:

Antenna polarization: vertical/horizontal polarization 

Type: T-type Omnidirectional Antenna 

Connector: RP-SMA Male

Frequency: 2.4GHz

Weight: 9.5g

Includes:

1x Nano Standard 8pin Socket Module Bay Adapter

1x Radiomaster Ranger Nano 2.4Ghz ELRS Module

1x Hexagon Socket Screwdriver

1x 2.4GHz T Antenna - RP-SMA

2x Radiomaster RP1 Receiver

1x Radiomaster RP2 Receiver

1x Futaba CRSF socket cable

3x M2*5 Screws
