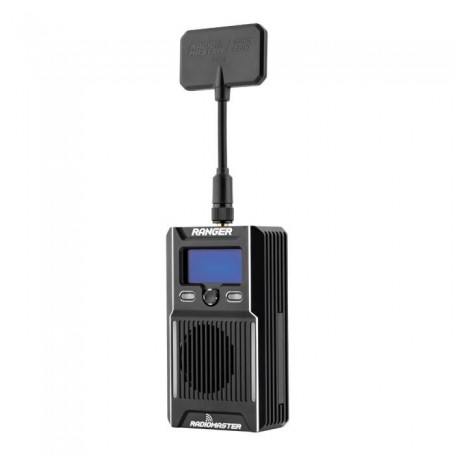

Radiomaster Ranger 2.4Ghz ELRS Module
Radiomaster Ranger 2.4Ghz ELRS Module
The RadioMaster Ranger 2.4GHz ELRS Module features a rugged CNC case and two module bay adapters.
Other features include an OLED display, built-in accelerometer, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system.
The 5 Direction Nav key and customizable shortcut buttons make this module user-friendly and customizable.
Features:
2 Customizable Shortcut Buttons
High-Efficiency Cooling System
ExpresssLRS 2.4GHz Module
Max F-1000Hz Packet Rate
WiFi and Bluetooth Support
Rugged CNC Housing
RGB Lighting effects
5 Direction NAV Key
1W Power Output
OLED Display
Specifications:
Dimension: 178*51*25mm, 138g(with Moxon antenna) / 95*51*25mm, 126g (without antenna)
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Weight: 138g (with Moxon antenna) / 135g (with T antenna)
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Power Output: 1WItem: Ranger 2.4GHz ELRS Module
MCU: ESP32(main), ESP8285(aux, as esp backpack)
Frequency Range: 2400 MHz to 2480 MHz
XT30 Power supply voltage: DC 6V - 16V
Maximum packet rate: 500Hz/F1000Hz
Minimum receiver refresh rate: 25Hz
Futaba CRSF socket cable: Included
Frequency: ExpressLRS 2.4GHz
Regulatory Domain: ISM2400
Packet Rate: MAX F-1000Hz
OLED screen: 64x128px
RF chip: SX1281IMLTRT
Accelerometer: Built-In
RGB: Built-in light strip
Bluetooth support: Yes
Wifi Support: Yes
MOXON ANTENNA:
Antenna polarization: vertical/horizontal polarization
Type: MOXON Directional Antenna
Connector: RP-SMA Male
Frequency: 2.4GHz
Weight: 12g
T-ANTENNA:
Antenna polarization: vertical/horizontal polarization
Type: T-type Omnidirectional Antenna
Connector: RP-SMA Male
Frequency: 2.4GHz
Weight: 9.5g
Includes:
1x Nano Standard 8pin Socket Module Bay Adapter
1x JR Standard 5pin Socket Module Bay Adapter
1x Radiomaster Ranger 2.4Ghz ELRS Module EU-LBT
1x 2.4GHz Moxon Antenna - RP-SMA
1x Hexagon Socket Screwdriver
1x 2.4GHz T Antenna - RP-SMA
1x Futaba CRSF socket cable
3x M2*5 Screws
