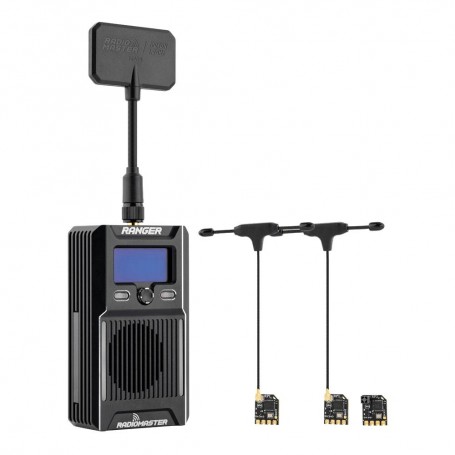

RadioMaster Ranger 2.4Ghz ELRS Module - Starter Combo



The RadioMaster Ranger 2.4GHz ELRS Module Starter Combo features a rugged CNC case and two module bay adapters.

Other features include an OLED display, built-in accelerometer, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system.

The 5 Direction Nav key and customizable shortcut buttons make this module user-friendly and customizable.

This starter combo also includes additional RPI receivers and one RP2 Receiver





Features:



2 Customizable Shortcut Buttons

High-Efficiency Cooling System

ExpresssLRS 2.4GHz Module

Max F-1000Hz Packet Rate

WiFi and Bluetooth Support

Rugged CNC Housing

RGB Lighting effects

5 Direction NAV Key

1W Power Output

OLED Display



Specifications:



Dimension: 178*51*25mm, 138g(with Moxon antenna) / 95*51*25mm, 126g (without antenna)

Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket

RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)

Weight: 138g (with Moxon antenna) / 135g (with T antenna)

3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)

Power Output: 1WItem: Ranger 2.4GHz ELRS Module

MCU: ESP32(main), ESP8285(aux, as esp backpack)

Frequency Range: 2400 MHz to 2480 MHz

XT30 Power supply voltage: DC 6V - 16V

Maximum packet rate: 500Hz/F1000Hz

Minimum receiver refresh rate: 25Hz

Futaba CRSF socket cable: Included

Frequency: ExpressLRS 2.4GHz

Regulatory Domain: ISM2400

Packet Rate: MAX F-1000Hz

OLED screen: 64x128px

RF chip: SX1281IMLTRT

Accelerometer: Built-In

RGB: Built-in light strip

Bluetooth support: Yes

Wifi Support: Yes



MOXON ANTENNA:



Antenna polarization: vertical/horizontal polarization 

Type: MOXON Directional Antenna 

Connector: RP-SMA Male

Frequency: 2.4GHz

Weight: 12g



T-ANTENNA:



Antenna polarization: vertical/horizontal polarization 

Type: T-type Omnidirectional Antenna 

Connector: RP-SMA Male

Frequency: 2.4GHz

Weight: 9.5g



Includes:



1x Nano Standard 8pin Socket Module Bay Adapter

1x JR Standard 5pin Socket Module Bay Adapter

1x Radiomaster Ranger 2.4Ghz ELRS Module

1x 2.4GHz Moxon Antenna - RP-SMA

1x Hexagon Socket Screwdriver

1x 2.4GHz T Antenna - RP-SMA

2x Radiomaster RP1 Receiver

1x Radiomaster RP2 Receiver

1x Futaba CRSF socket cable

3x M2*5 Screws
