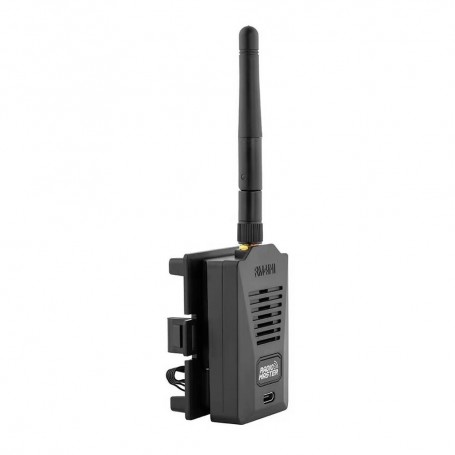

RadioMaster Micro 2.4GHz 4-in-1 Module - JR / Nano

RadioMaster Micro 2.4GHz 4-in-1 Module - JR / Nano

The Radiomaster Micro 2.4GHz 4-in-1 Module is an external nano module that can also be used on JR modules with the included JR adapter.

This means this module is compatible with Zorro and also TX16s, TX16sMKII, TX12, TX12MKII, and Boxer. The module features a +20dBm RF gain, a 2.4GHz frequency band, and an operational voltage of 4.5-8.4V.

Features:

For Zorro, TX16S MKII, TX12 MKII and more

Compatible with more than 70 RF Protocols

Works with JR and Nano Module Bays

Up to 20dBm power output

Wireless trainer function

Specifications:

Operational frequency: 2.4G ISM band (2400mHz - 2483mHz)

RF Chipsets: CC2500, NRF24L01, A7105 and CYRF6936

Dimension: 73*42*22mm (without antenna)

Weight: 30g (without antenna)

Operational voltage: 4.5-8.4V

Operational current:≈100mA

Item: RM 4IN1 Module

RF Gain: +20dBm

Includes:

1x RadioMaster Micro 2.4GHz 4-in-1 Module (Nano)

1x JR Adapter

1x Antenna
