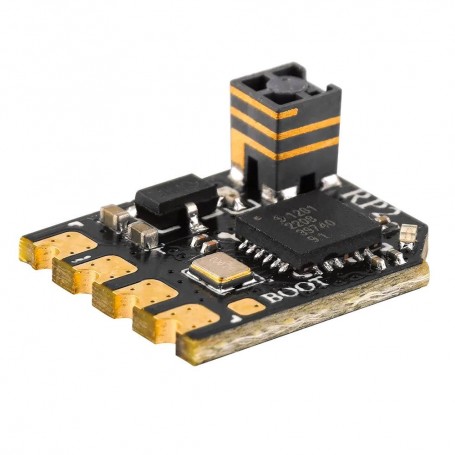

RP2 ExpressLRS 2.4ghz Nano Receiver V2

RP2 ExpressLRS 2.4ghz Nano Receiver V2

The RadioMaster RP2 ExpressLRS 2.4ghz Nano Receiver w/ Fixed SMT Antenna is an open-source receiver based on ExpressLRS.

It features an ESP8285 MCU and an SX1280 RF chip. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.

The RP2 features WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.

Due to the low-latency and high-refresh-rate RF module, the RP2 is ideal for FPV racing or Long Range flights.

Suitable for Whoops, drones, and fixed-wing models due to the ultra-light and Nano size, these receivers can fit just about anywhere

Features:

Built-in WIFI so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone

Upgraded rigid antenna with greater durability and performance

Improved PCB design is better for heat dissipation

Solder pads are improved and easier to solder to

Low-latency and high-refresh-rate RF module

Open-source receiver based on ExpressLRS

LED on the top side of PCB

Built-In ceramic antenna

SX1280 RF chip

ESP8285 MCU

Specifications:

Maximum receive refresh rate: 500Hz / F1000Hz

Firmware Version: ExpressLRS v2.4 pre-installed

Item: RP2 Nano ExpressLRS 2.4GHz Receiver

FW Target: RadioMaster RP1/2 2400 RX

Minimum receiver refresh rate: 25Hz

Antenna: On Board SMT Antenna

Weight: 2.2g (Including antenna)

Dimension: 13mm*11mm*3mm

Working voltage: 5v

Bus interface: CRSF

Type: ISM

Includes:

1x RadioMaster RP2 ExpressLRS 2.4ghz Nano Receiver w/ Fixed SMT Antenna

1x Shrink Wrap
